MAL205158103E3 - Vishay

Description: Aluminum Electrolytic Capacitors Power Economic Printed Wiring

Download MAL205158103E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL205158103E3 - Vishay - PCB symbol
click to zoom

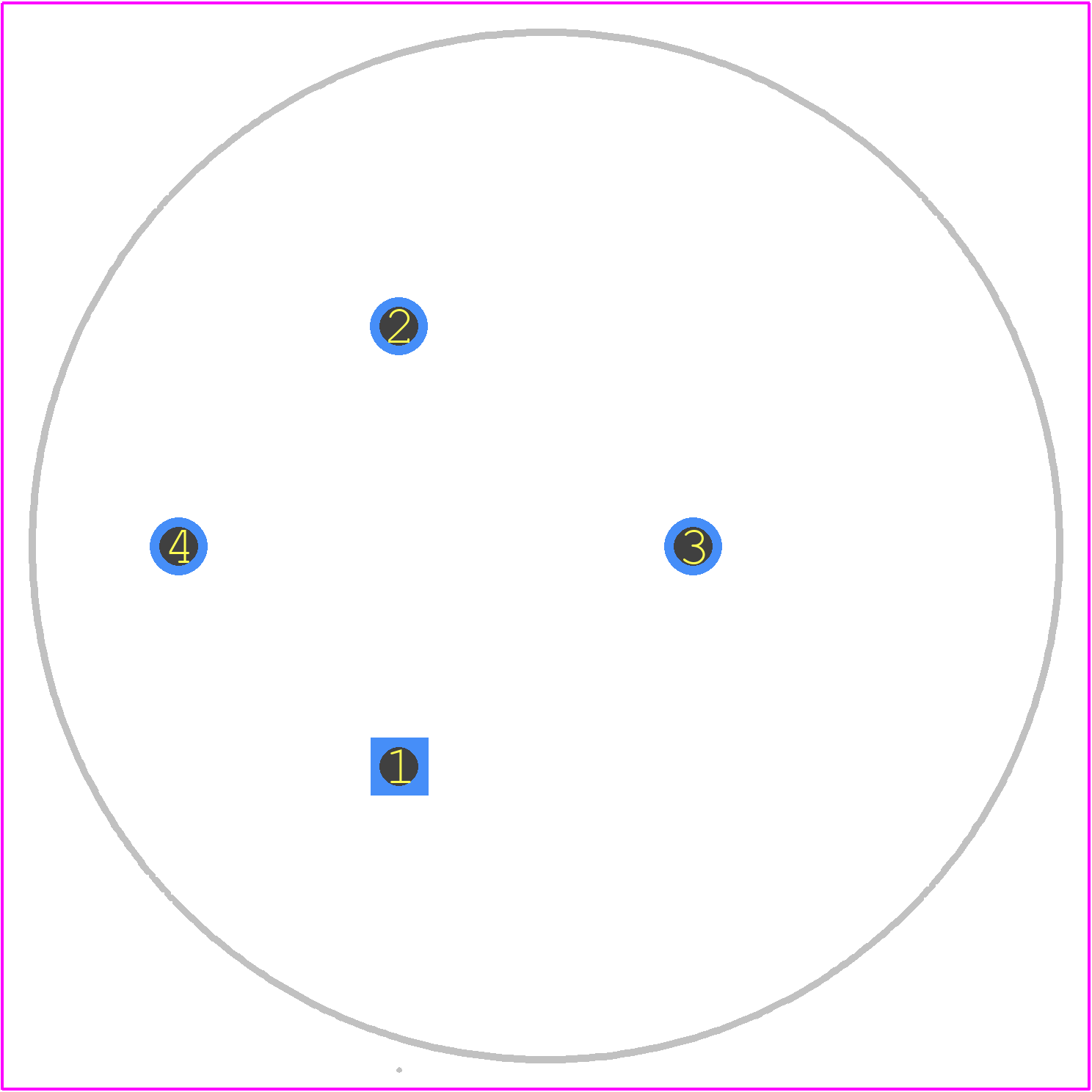

PCB Footprints
MAL205158103E3 - Vishay PCB footprint - Other - Other - MAL205158103E3-7
click to zoom
3D Models
MAL205158103E3 - Vishay - 3D model - Other - MAL205158103E3-7
click to zoom

MAL205158103E3 Details

  • Manufacturer Part Number:

    MAL205158103E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    10000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    37 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    3.78 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    PCB Mount

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Reference Standard:

    IEC60384-4

  • Ripple Current:

    5400 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    FLAT

MAL205158103E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL205158103E3 can be found in Vishay's application note AN1033, which provides guidelines for surface-mount assembly of Vishay's metal film resistors.
  • To prevent damage, handle the MAL205158103E3 by the body, avoiding touching the terminations. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage.
  • The maximum power rating for the MAL205158103E3 decreases with increasing temperature. Consult Vishay's application note AN20005, which provides derating curves for metal film resistors.
  • While the MAL205158103E3 is not specifically designed for high-frequency applications, it can be used up to a few hundred kHz. However, for frequencies above 1 MHz, consider using a high-frequency resistor like Vishay's HF series.
  • Use a soldering iron with a temperature of 250°C to 270°C, and a solder with a melting point of 180°C to 200°C. Apply a small amount of solder to the termination, and avoid using excessive force or bending the leads.
