MAL205158472E3 - Vishay

Description: Aluminum Electrolytic Capacitors - Radial Leaded 4700uF 63V 30x40mm

Download MAL205158472E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL205158472E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

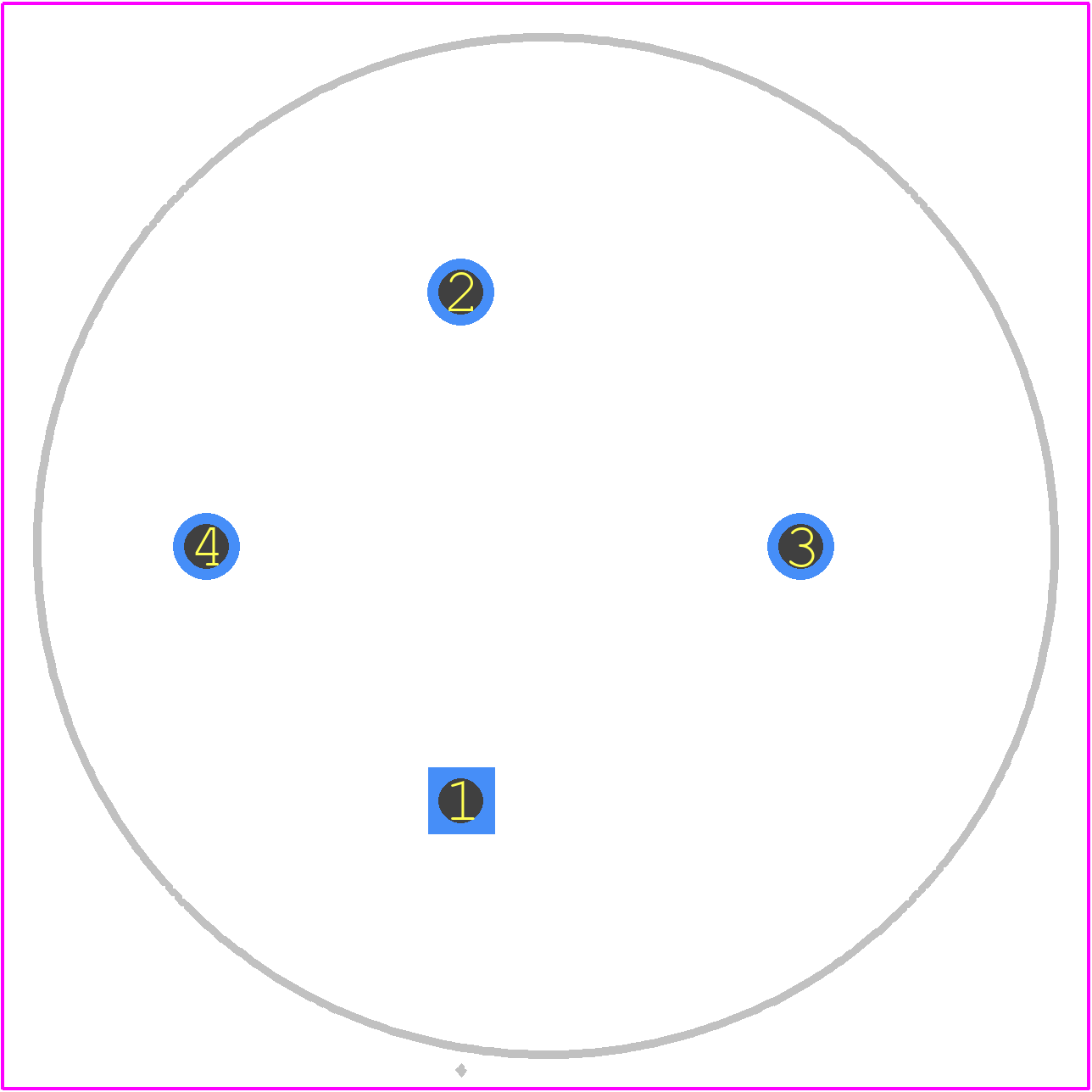

MAL205158472E3 - Vishay PCB footprint - Other - Other - MAL205158472E3-2
click to zoom
3D Models
MAL205158472E3 - Vishay - 3D model - Other - MAL205158472E3-2
click to zoom

MAL205158472E3 Details

  • Manufacturer Part Number:

    MAL205158472E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    49 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.78 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    PCB Mount

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Reference Standard:

    IEC60384-4

  • Ripple Current:

    4100 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    FLAT

MAL205158472E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL205158472E3 can be found in the Vishay Intertechnologies' application note AN10395, which provides guidelines for surface mount assembly of ceramic chip capacitors.
  • To prevent damage, handle the MAL205158472E3 component by the edges, avoid touching the electrodes, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD).
  • The maximum voltage derating for MAL205158472E3 is typically 80% of the rated voltage, but it's recommended to consult the datasheet and application notes for specific derating guidelines.
  • Yes, the MAL205158472E3 is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency (SRF). However, it's essential to consider the component's impedance characteristics and ensure it meets the specific application requirements.
  • The MAL205158472E3 is rated for operation up to 125°C, but its capacitance and ESR may vary with temperature. Consult the datasheet and application notes for specific temperature characteristics and derating guidelines.
