MAL205159222E3 - Vishay

Description: 2200 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - 4 Lead 71mOhm @ 100Hz 12000 Hrs @ 85°C

Download MAL205159222E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL205159222E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

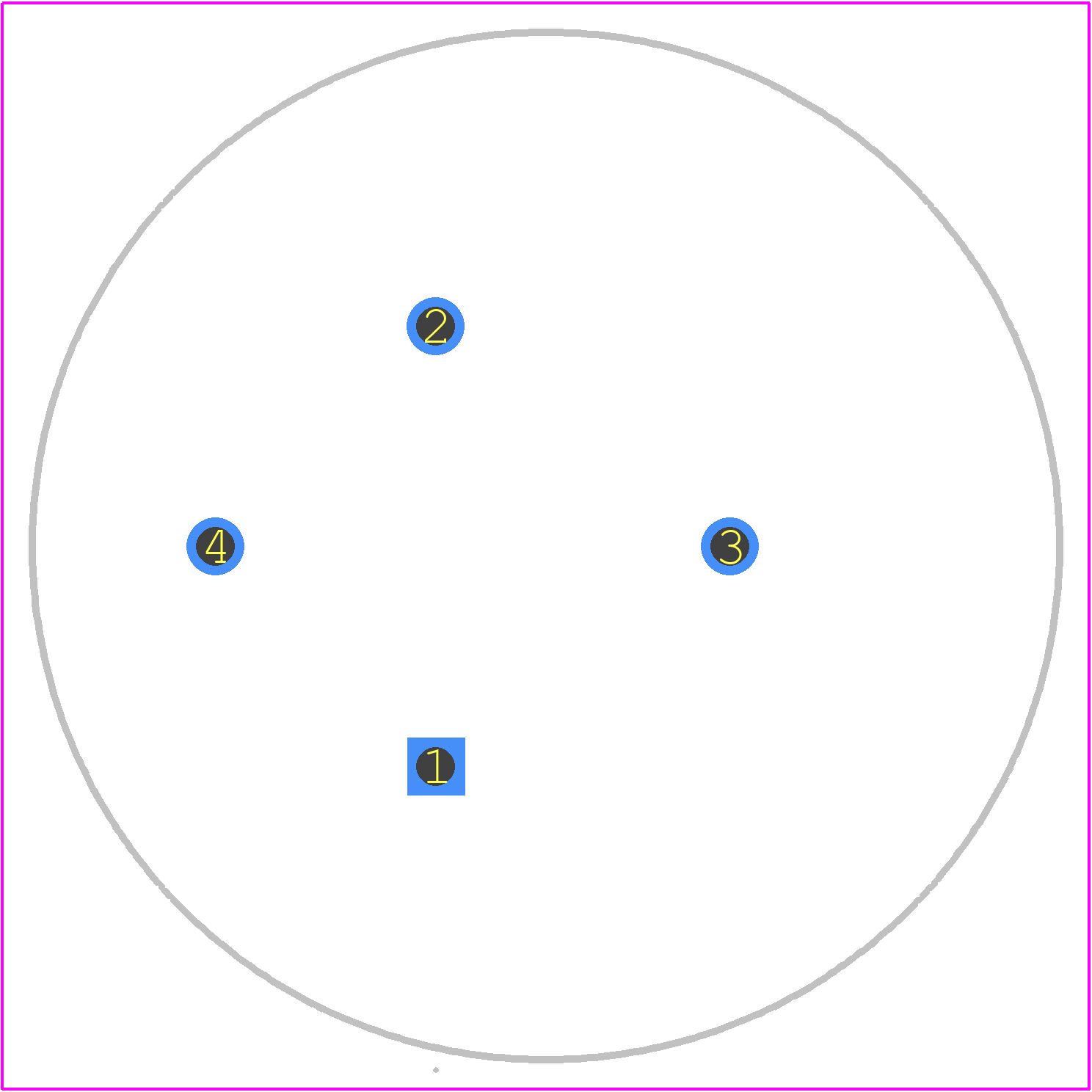

MAL205159222E3 - Vishay PCB footprint - Other - Other - MAL205159222E3-2
click to zoom
3D Models
MAL205159222E3 - Vishay - 3D model - Other - MAL205159222E3-2
click to zoom

MAL205159222E3 Details

  • Manufacturer Part Number:

    MAL205159222E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    2200 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    71 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.32 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    PCB Mount

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Reference Standard:

    IEC60384-4

  • Ripple Current:

    3690 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    FLAT

MAL205159222E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL205159222E3 can be found in the Vishay Intertechnologies' application note AN10395, which provides guidelines for surface mount assembly of ceramic chip capacitors.
  • To prevent damage, handle the MAL205159222E3 component by the edges, avoid touching the electrodes, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD).
  • The maximum voltage derating for MAL205159222E3 is typically 80% of the rated voltage, but it's recommended to consult the datasheet and application notes for specific derating guidelines.
  • Yes, the MAL205159222E3 is suitable for high-frequency applications up to several hundred MHz, but the impedance and parasitic effects should be considered in the design. Consult the datasheet and application notes for more information.
  • Store and transport MAL205159222E3 components in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Avoid bending, flexing, or compressing the components during storage and transportation.
