- Part Number MAL205655103E3
- Manufacturer Vishay
- Pin Count 2
- Part Category Capacitor Polarised
- Package Category Capacitor, Polarized Radial Diameter

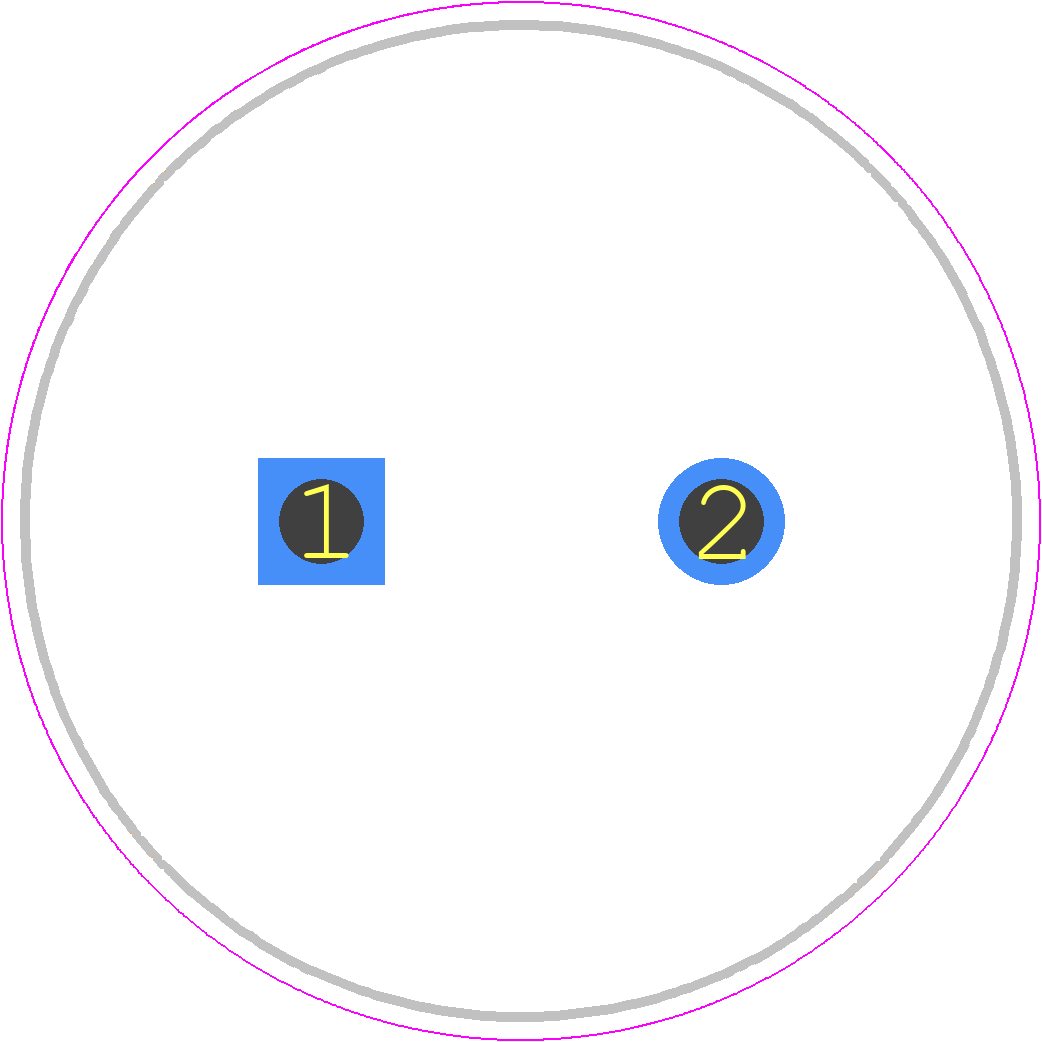

- Footprint Name Capacitor, Polarized Radial Diameter - 25X30
- Released Date Jul 2, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAL205655103E3 Details
-
Manufacturer Part Number:
MAL205655103E3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
HTS Code:
8532.22.00.40
-
Factory Lead Time:
8 Weeks
-
Manufacturer:
Vishay Intertechnologies
-
YTEOL:
6
-
Capacitance:
10000 µF
-
Capacitor Type:
ALUMINUM ELECTROLYTIC CAPACITOR
