MAL205657103E3 - Vishay

Description: Aluminum Electrolytic Capacitors - Snap In 10000uF 40V 30x40mm

Download MAL205657103E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL205657103E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

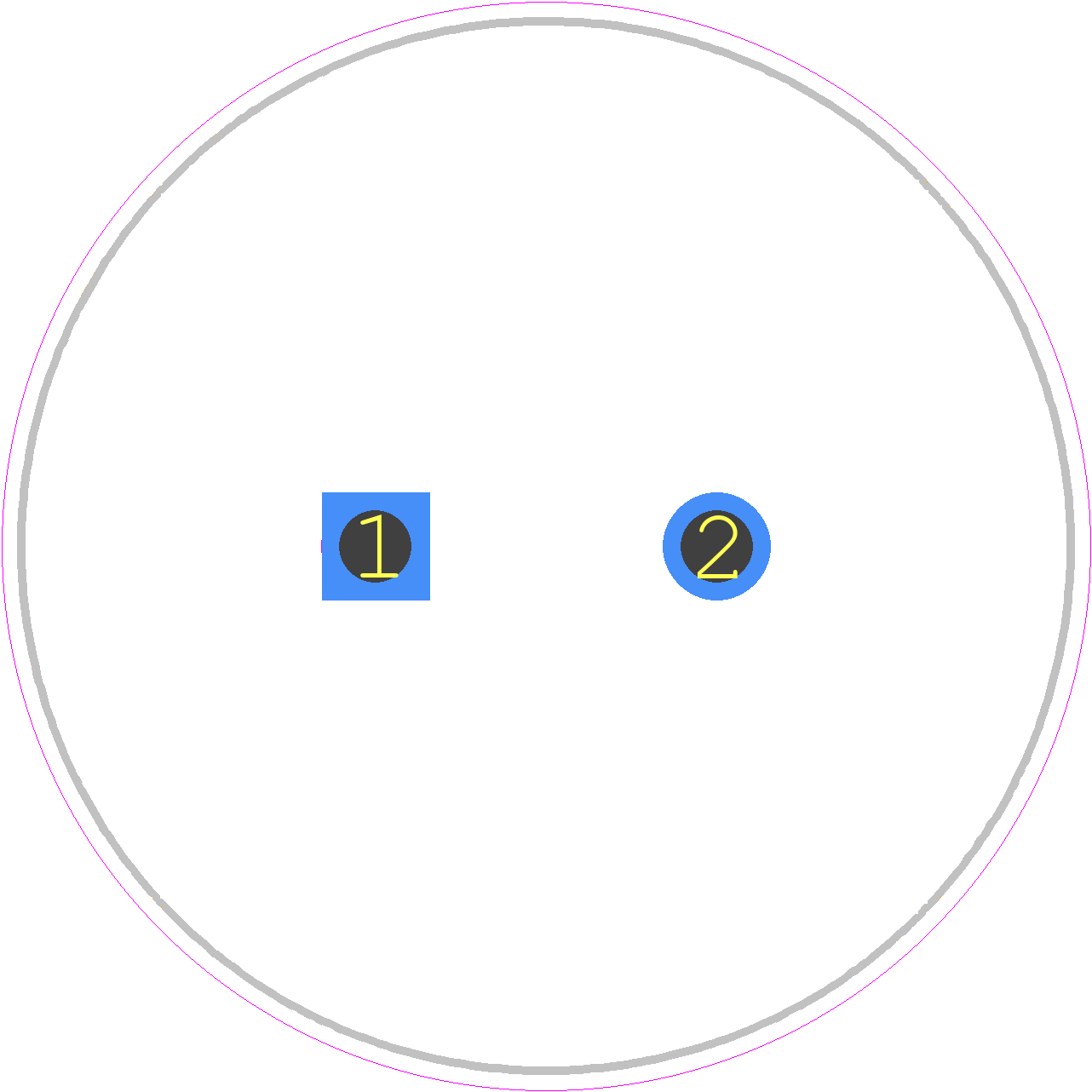

MAL205657103E3 - Vishay PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30mm x 40mm
click to zoom
3D Models
MAL205657103E3 - Vishay - 3D model - Capacitor, Polarized Radial Diameter - 30mm x 40mm
click to zoom

MAL205657103E3 Details

  • Manufacturer Part Number:

    MAL205657103E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Capacitance:

    10000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    38 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.404 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    40 V

  • Ripple Current:

    4200 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN
