MAL205659472E3 - Vishay

Description: 4700 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 75mOhm @ 100Hz 12000 Hrs @ 85°C

Download MAL205659472E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL205659472E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

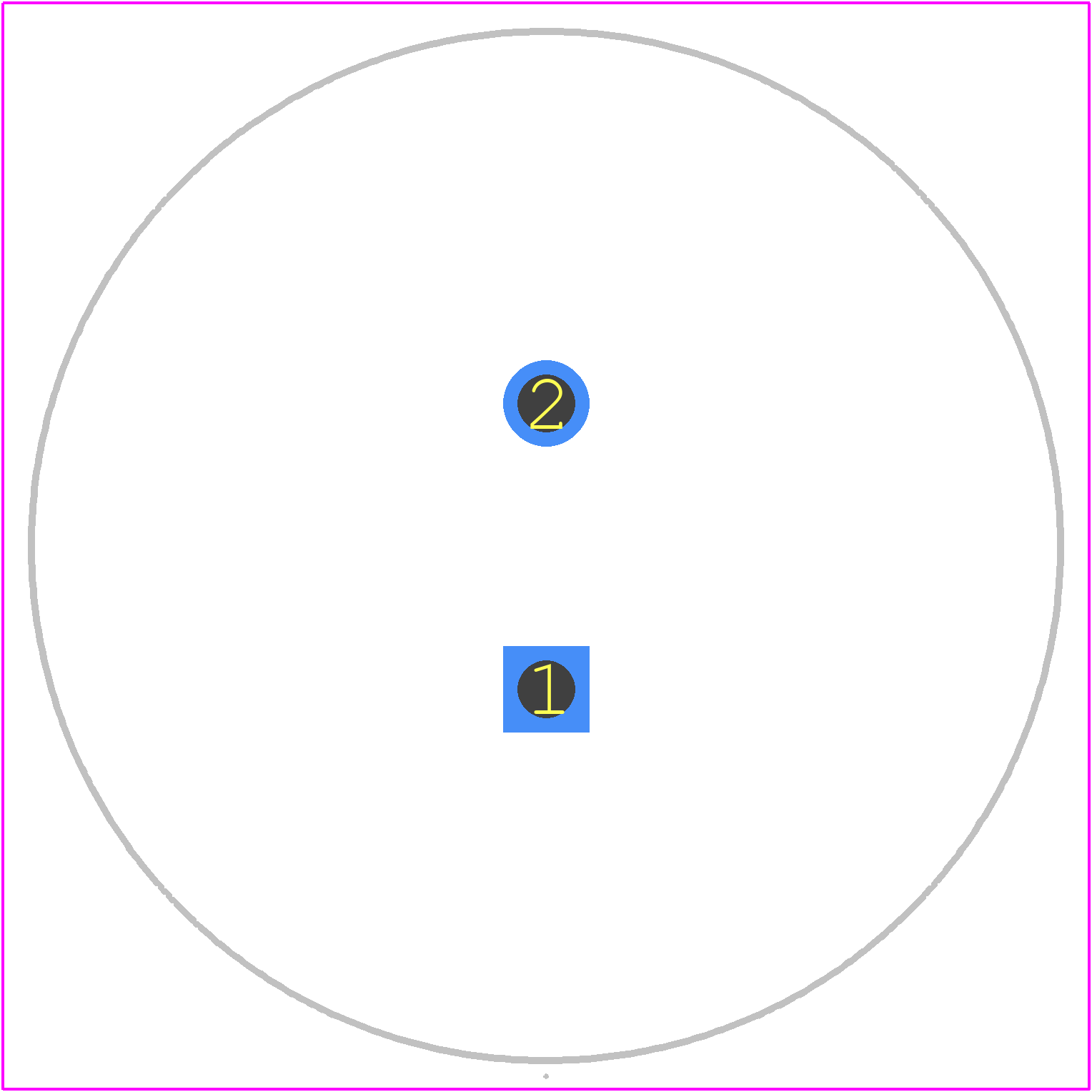

MAL205659472E3 - Vishay PCB footprint - Other - Other - 35 x 50mm
click to zoom
3D Models
MAL205659472E3 - Vishay - 3D model - Other - 35 x 50mm
click to zoom

MAL205659472E3 Details

  • Manufacturer Part Number:

    MAL205659472E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    75 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.824 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    3590 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN
