MAL205753221E3 - Vishay

Description: 057 PSM Snapin Aluminium Cap,250V,220uF Vishay 220μF 250 V dc Aluminium Electrolytic Capacitor, 57 Series 5000h 25 (Dia.) x 30mm

Download MAL205753221E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL205753221E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

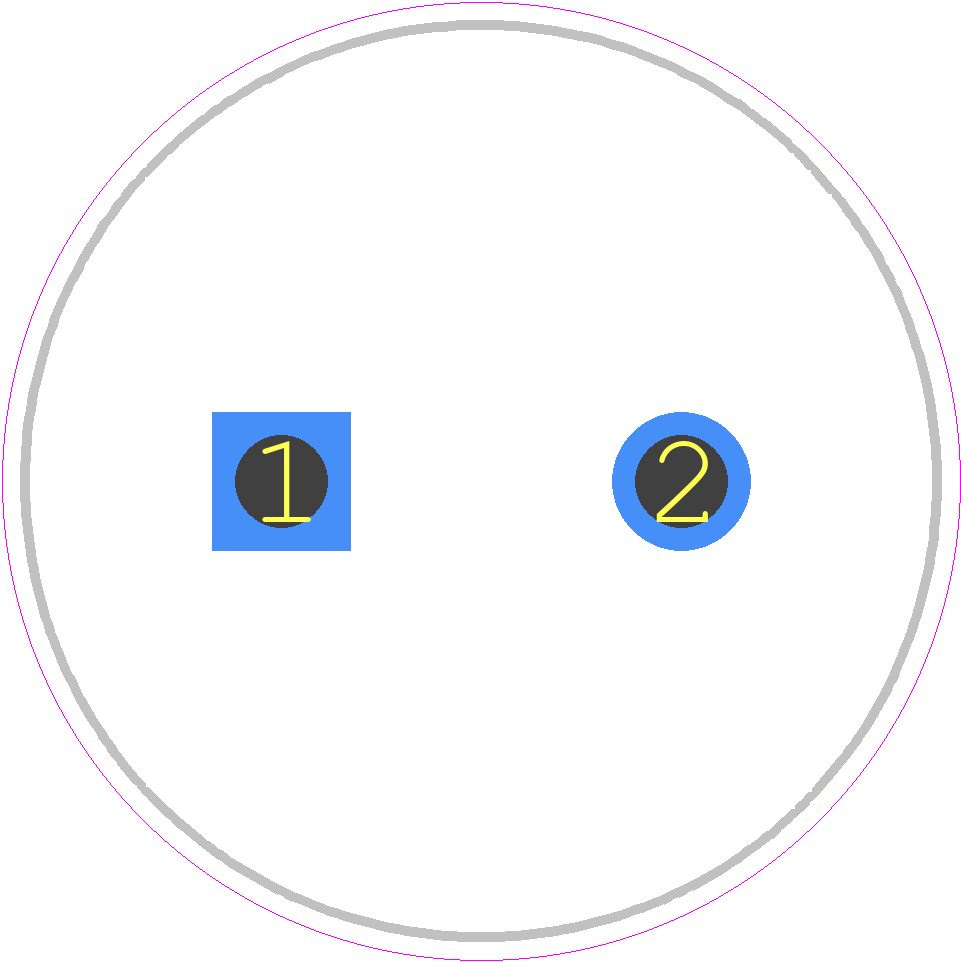

MAL205753221E3 - Vishay PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - MAL205753221E3_A
click to zoom
3D Models
MAL205753221E3 - Vishay - 3D model - Capacitor, Polarized Radial Diameter - MAL205753221E3_A
click to zoom

MAL205753221E3 Details

  • Manufacturer Part Number:

    MAL205753221E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    660 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.334 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    1100 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

MAL205753221E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL205753221E3 can be found in Vishay's application note AN10365, which provides guidelines for surface-mount assembly of Vishay's metal alloy resistors.
  • To prevent damage, handle the MAL205753221E3 component by the edges, avoid touching the resistive element, and use anti-static precautions to prevent electrostatic discharge (ESD) damage.
  • The maximum power rating for the MAL205753221E3 is 1 Watt, as specified in the datasheet. Exceeding this rating may lead to component failure or reduced lifespan.
  • While the MAL205753221E3 is suitable for general-purpose applications, it's not recommended for high-frequency applications (>100 kHz) due to its metal alloy construction, which may introduce inductive effects and affect performance.
  • The MAL205753221E3 has a maximum operating temperature of 150°C, as specified in the datasheet. However, its performance may degrade at high temperatures, and it's recommended to derate the power according to the temperature derating curve provided in the datasheet.
