MAL205756101E3 - Vishay

Description: Aluminum Electrolytic Capacitors - Snap In 100uF 400volts

Download MAL205756101E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL205756101E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

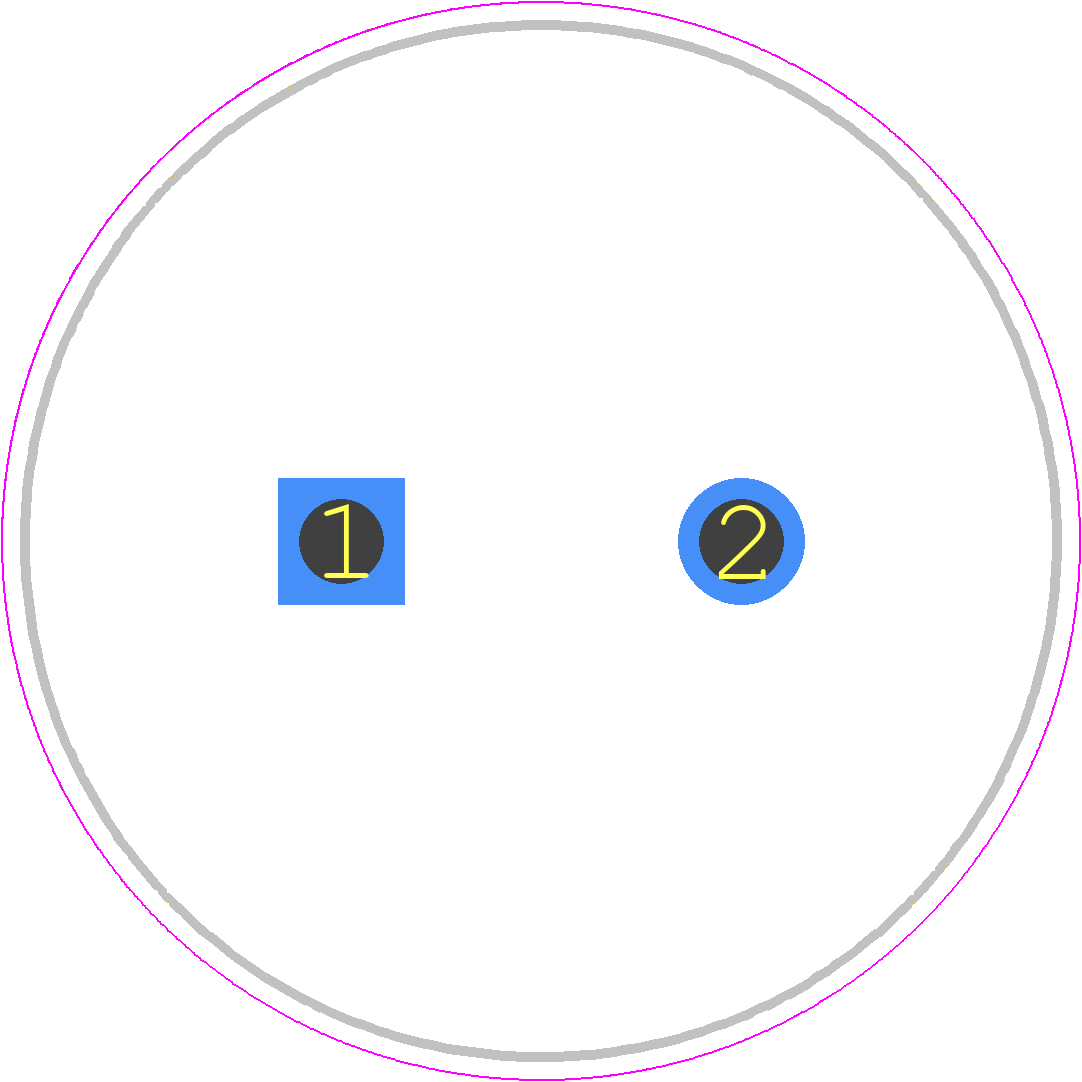

MAL205756101E3 - Vishay PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25*30-96
click to zoom
3D Models
MAL205756101E3 - Vishay - 3D model - Capacitor, Polarized Radial Diameter - 25*30-96
click to zoom

MAL205756101E3 Details

  • Manufacturer Part Number:

    MAL205756101E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    1400 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.244 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    860 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

MAL205756101E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL205756101E3 can be found in Vishay's application note AN1033, which provides guidelines for surface-mount assembly of ceramic chip capacitors.
  • To prevent damage, handle the capacitor by the body, avoiding touching the terminations. Use a vacuum pickup or tweezers to handle the component, and avoid bending or flexing the leads.
  • The maximum voltage derating for MAL205756101E3 is typically 80% of the rated voltage. However, it's recommended to consult Vishay's application notes or contact their technical support for specific derating guidelines.
  • MAL205756101E3 is rated for operation up to 125°C. However, it's essential to consider the capacitor's temperature coefficient, which may affect its performance at high temperatures. Consult Vishay's application notes or technical support for guidance on high-temperature applications.
  • The ESR of MAL205756101E3 is not explicitly stated in the datasheet. However, Vishay provides ESR data for similar capacitors in their application notes or technical documentation. Contact Vishay's technical support for specific ESR information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAL205756101E3 Overview

Use the download button to access the MAL205756101E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL20, or try a keyword search, such as Ceramic Capacitors
