MAL205857472E3 - Vishay

Description: Vishay 4700µF 40V dc Aluminium Electrolytic Capacitor, Through Hole 30 (Dia.) x 30mm +105°C 30mm 10mm

Download MAL205857472E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL205857472E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

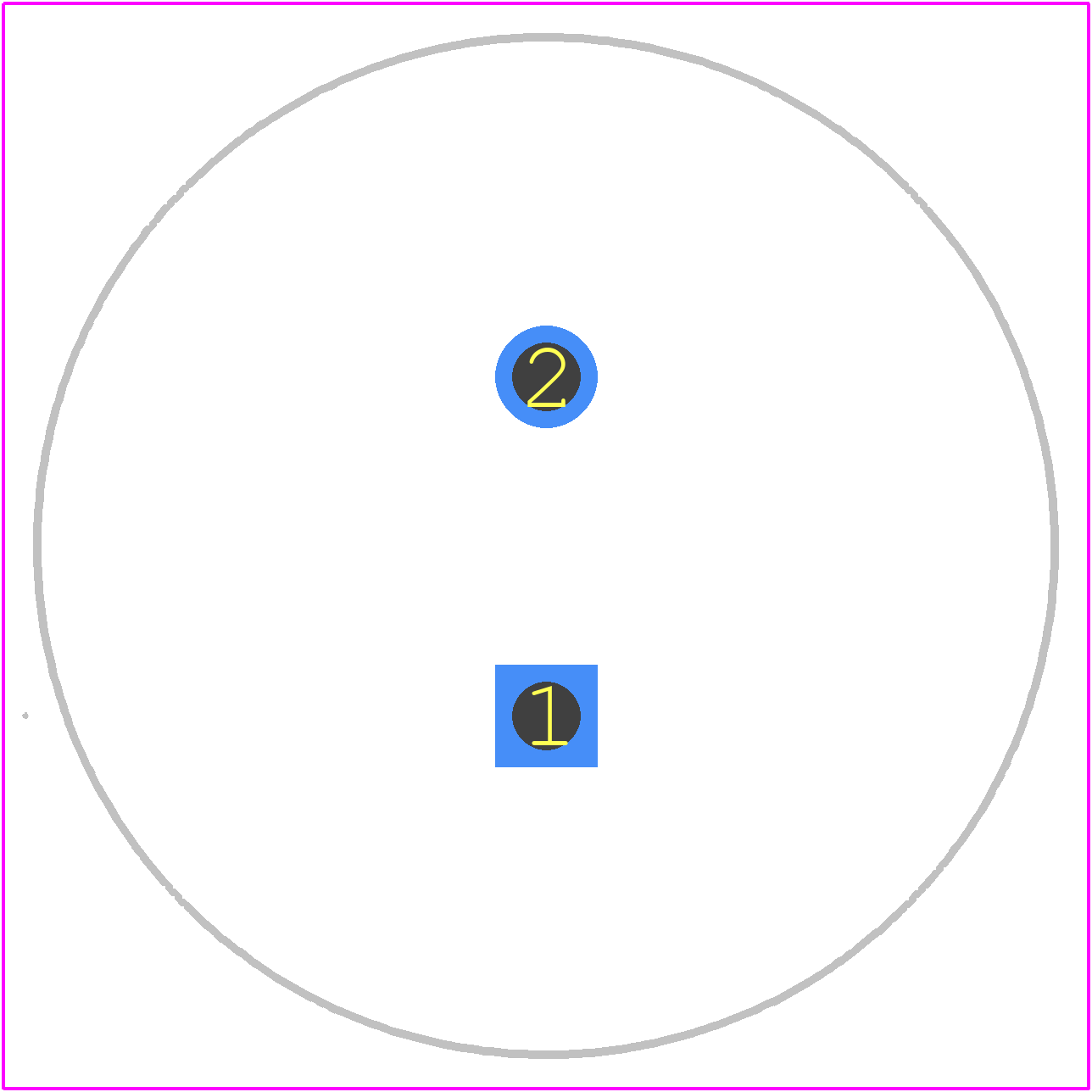

MAL205857472E3 - Vishay PCB footprint - Other - Other - MAL205857472E3-6
click to zoom
3D Models
MAL205857472E3 - Vishay - 3D model - Other - MAL205857472E3-6
click to zoom

MAL205857472E3 Details

  • Manufacturer Part Number:

    MAL205857472E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: IEC60384-4

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    59 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.132 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    40 V

  • Ripple Current:

    2960 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

MAL205857472E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL205857472E3 can be found in Vishay's application note AN10365, which provides guidelines for surface-mount assembly of ceramic chip capacitors.
  • To prevent damage, handle the MAL205857472E3 component by the edges, avoid touching the electrodes, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD).
  • The maximum voltage derating for MAL205857472E3 is typically 80% of the rated voltage, but this may vary depending on the specific application and environmental conditions. Consult Vishay's application notes or contact their technical support for more information.
  • The MAL205857472E3 is rated for operation up to 125°C, but its capacitance and ESR may change significantly at high temperatures. Consult Vishay's datasheet and application notes for more information on temperature derating and specific application guidelines.
  • The ESR of MAL205857472E3 can be determined by measuring the impedance of the component at high frequencies (e.g., 100 kHz) using an impedance analyzer or a vector network analyzer. Consult Vishay's application notes or contact their technical support for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAL205857472E3 Overview

Use the download button to access the MAL205857472E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL20, or try a keyword search, such as Aluminum Electrolytic Capacitors
