MAL205858222E3 - Vishay

Description: 2200 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 101mOhm @ 100Hz 10000 Hrs @ 105°C , -40°C ~ 105°C

Download MAL205858222E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL205858222E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

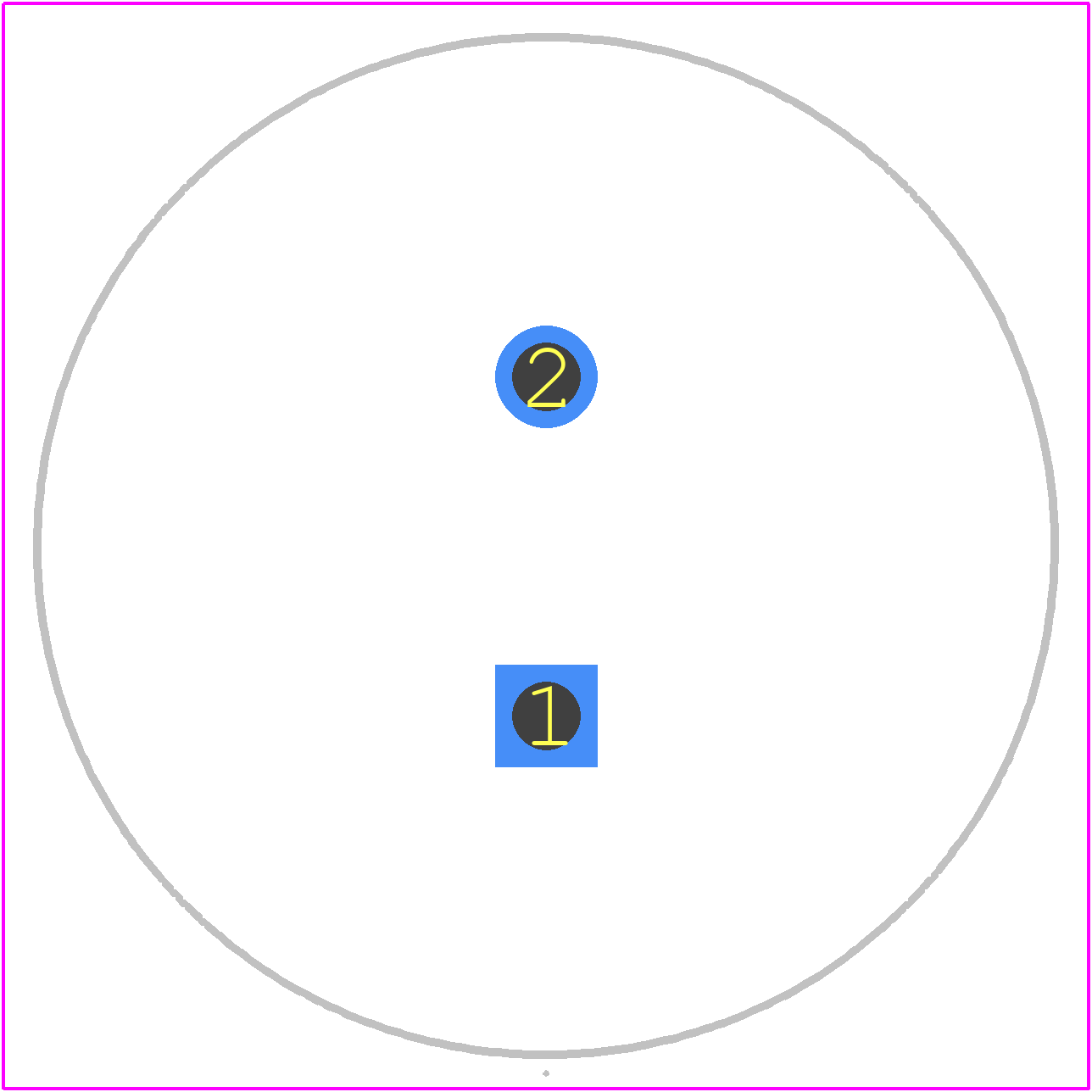

MAL205858222E3 - Vishay PCB footprint - Other - Other - 30mm x 30mm_2026-1.11
click to zoom
3D Models
MAL205858222E3 - Vishay - 3D model - Other - 30mm x 30mm_2026-1.11
click to zoom

MAL205858222E3 Details

  • Manufacturer Part Number:

    MAL205858222E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Additional Feature:

    STANDARD: IEC60384-4

  • Capacitance:

    2200 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    101 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.836 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    2270 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

MAL205858222E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL205858222E3 can be found in the Vishay Intertechnologies' application note AN10395, which provides guidelines for surface mount assembly of MLCCs.
  • To prevent damage, handle the MAL205858222E3 component by the edges, avoid touching the electrodes, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD).
  • The maximum voltage derating for MAL205858222E3 is typically 80% of the rated voltage, but it's recommended to consult the datasheet and application notes for specific derating guidelines.
  • Yes, the MAL205858222E3 is suitable for high-frequency applications up to 1 GHz, but it's essential to consider the component's self-resonance frequency, parasitic inductance, and capacitance changes with frequency.
  • Store MAL205858222E3 components in a dry, cool place, and use moisture-barrier bags or desiccant packets to prevent moisture absorption. Avoid exposing the components to high humidity or temperature fluctuations.
