MAL205858472E3 - Vishay

Description: Vishay Aluminium Electrolytic Capacitor 4700μF 63V dc 35mm Through Hole 58 Series +105°C

Download MAL205858472E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL205858472E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

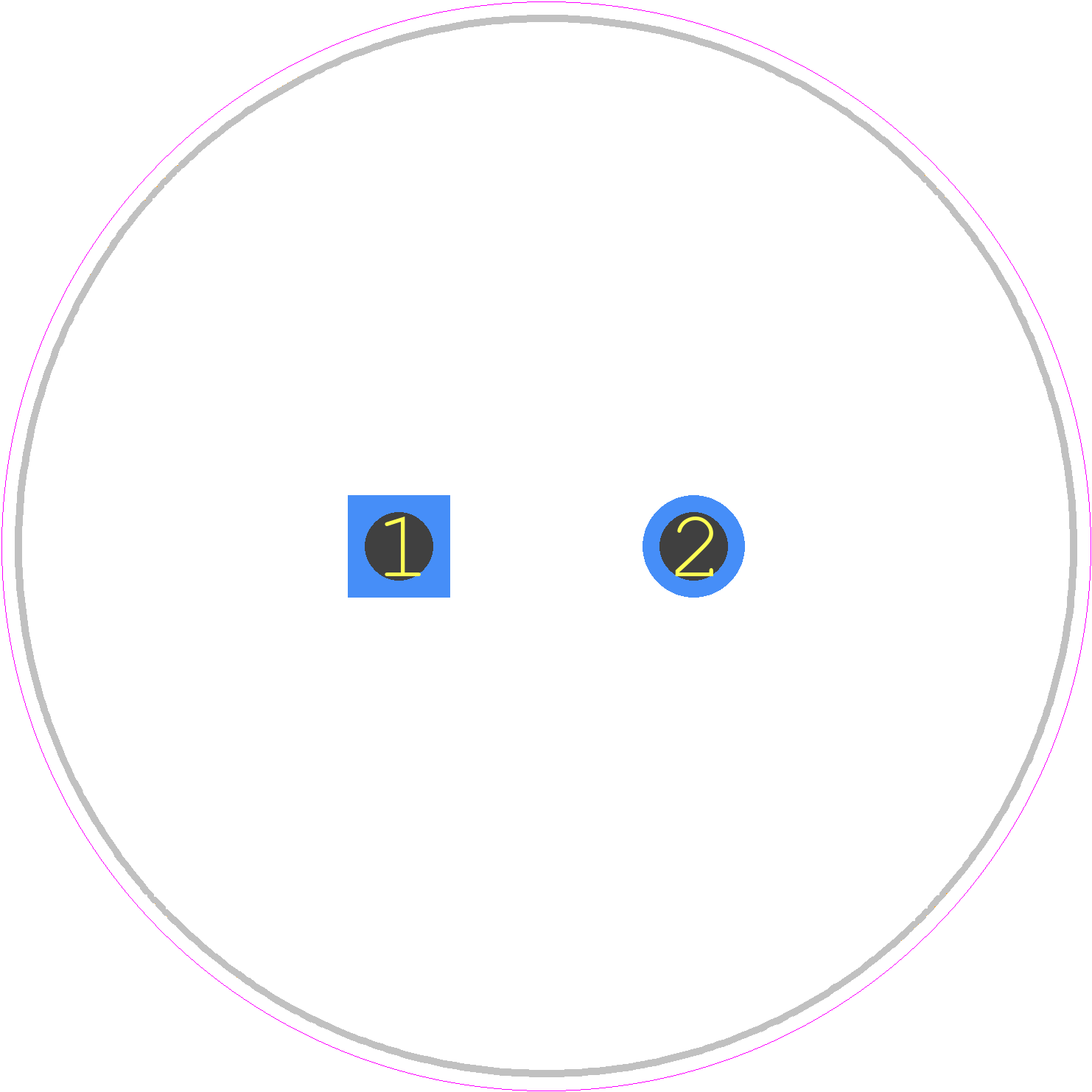

MAL205858472E3 - Vishay PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - MAL 36X42
click to zoom
3D Models
MAL205858472E3 - Vishay - 3D model - Capacitor, Polarized Radial Diameter - MAL 36X42
click to zoom

MAL205858472E3 Details

  • Manufacturer Part Number:

    MAL205858472E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Additional Feature:

    STANDARD: IEC60384-4

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    60 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.781 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    3650 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

MAL205858472E3 Frequently Asked Questions (FAQs)

  • The recommended storage condition for MAL205858472E3 is to store them in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
  • While MAL205858472E3 is suitable for high-frequency applications, its performance may degrade above 100 kHz. It's recommended to consult with a Vishay Intertechnologies representative or perform thorough testing before using it in high-frequency applications.
  • To prevent electrostatic discharge (ESD) damage, handle MAL205858472E3 components in an ESD-protected environment, use ESD-protective packaging, and follow proper handling and storage procedures.
  • The maximum operating temperature for MAL205858472E3 is 125°C, but it's recommended to operate it within the specified temperature range of -40°C to 105°C for optimal performance and reliability.
  • MAL205858472E3 is not AEC-Q200 qualified, so it's not recommended for use in automotive applications. However, Vishay Intertechnologies offers other products that meet the AEC-Q200 standard for automotive use.
