MAL205859471E3 - Vishay

Description: Aluminum Electrolytic Capacitors - Snap In 470uF 100V 22x30mm

Download MAL205859471E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL205859471E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

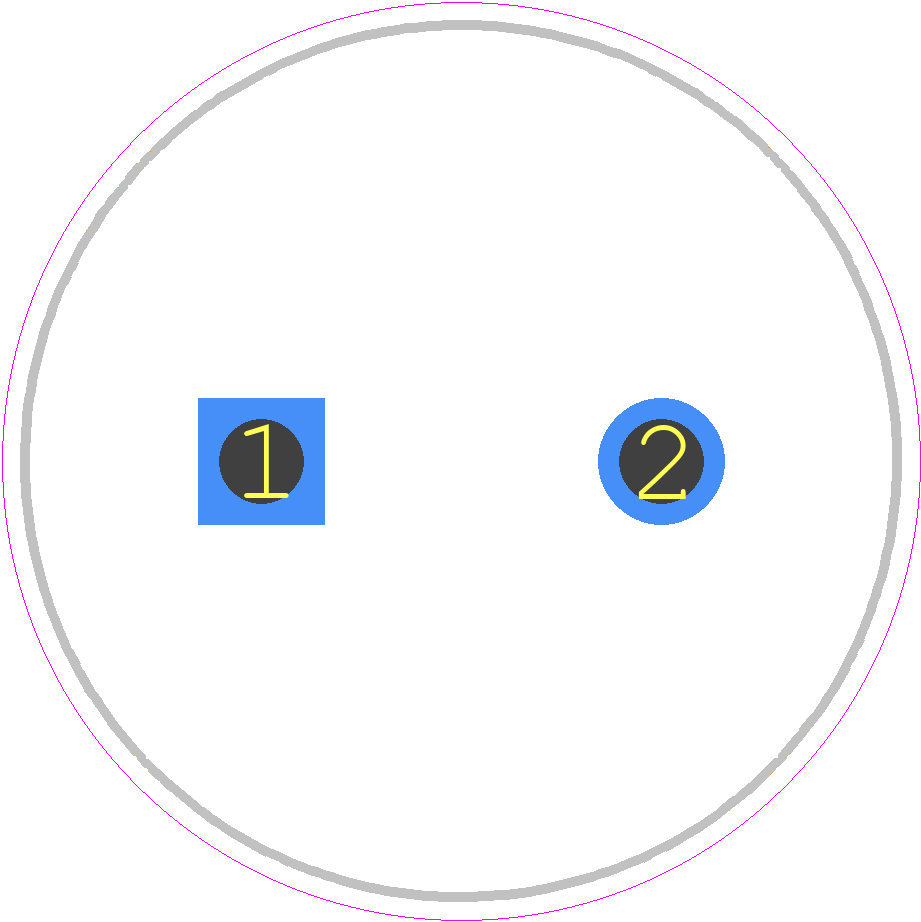

MAL205859471E3 - Vishay PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22mmx30mm
click to zoom
3D Models
MAL205859471E3 - Vishay - 3D model - Capacitor, Polarized Radial Diameter - 22mmx30mm
click to zoom

MAL205859471E3 Details

  • Manufacturer Part Number:

    MAL205859471E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Additional Feature:

    STANDARD: IEC60384-4

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    280 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.286 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    1140 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

MAL205859471E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL205859471E3 can be found in Vishay's application note AN10365, which provides guidelines for surface-mount assembly of Vishay's metal alloy resistors.
  • To prevent damage, handle the MAL205859471E3 component by the body, avoiding touching the terminations. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage.
  • The maximum power rating for MAL205859471E3 is 1 Watt. Exceeding this rating may lead to component failure or reduced lifespan.
  • While MAL205859471E3 is suitable for general-purpose applications, it's not recommended for high-frequency applications (>100 kHz) due to its metal alloy construction, which may introduce inductive effects and affect performance.
  • Store MAL205859471E3 components in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Avoid mixing with other components or exposing them to contaminants.
