MAL209327561E3 - Vishay

Description: 560 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 300mOhm @ 120Hz 2000 Hrs @ 85°C

Download MAL209327561E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL209327561E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

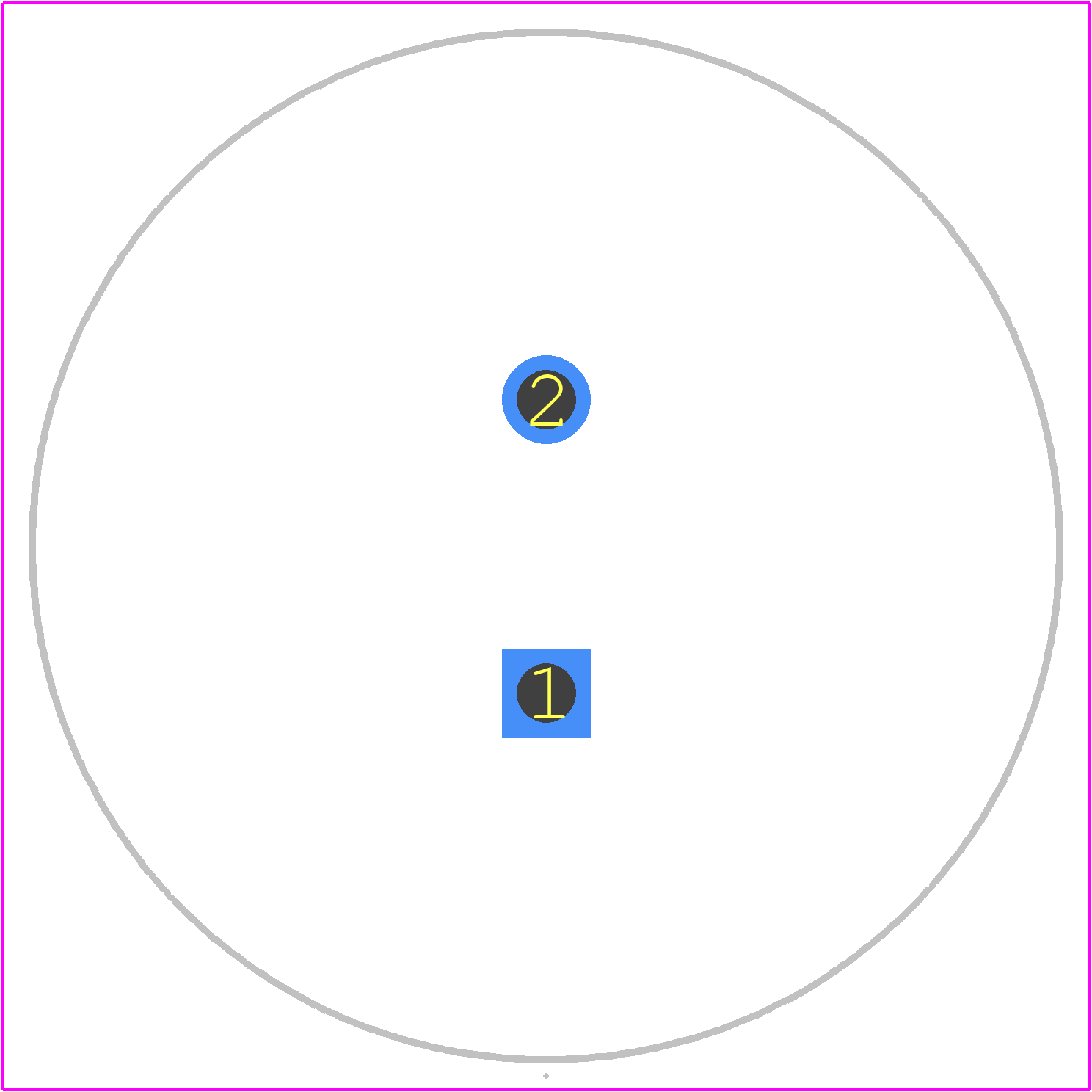

MAL209327561E3 - Vishay PCB footprint - Other - Other - 35 x 45mm
click to zoom
3D Models
MAL209327561E3 - Vishay - 3D model - Other - 35 x 45mm
click to zoom

MAL209327561E3 Details

  • Manufacturer Part Number:

    MAL209327561E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    560 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    300 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.5 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    2740 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

MAL209327561E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL209327561E3 can be found in the Vishay Intertechnologies' application note AN10395, which provides guidelines for surface mount assembly of ceramic chip capacitors.
  • To prevent damage, handle the MAL209327561E3 component by the edges, avoid touching the electrodes, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD).
  • The maximum voltage derating for MAL209327561E3 is typically 80% of the rated voltage, but it's recommended to consult the datasheet and application notes for specific derating guidelines.
  • MAL209327561E3 has a maximum operating temperature of 125°C, but it's recommended to consult the datasheet and application notes for specific temperature derating guidelines and to ensure the component meets the requirements of your application.
  • Store MAL209327561E3 components in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Follow the storage guidelines provided by Vishay Intertechnologies to maintain the component's shelf life.
