Part Image

MAL211817222E3 - Vishay

Description: VISHAY - MAL211817222E3 - CAP, ALU ELEC, 2200UF, 40V, AXIAL

Download MAL211817222E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

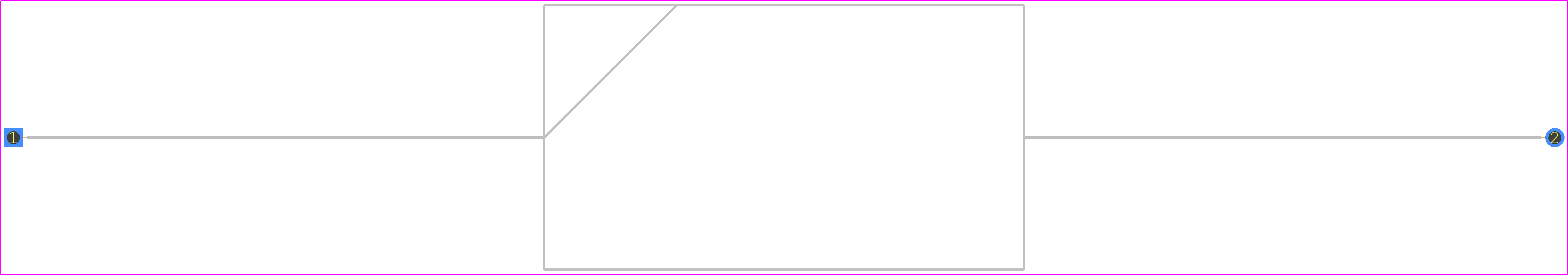

MAL211817222E3 - Vishay PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - capacitor 2200uf 40V Vishay Axial
click to zoom
3D Models
MAL211817222E3 - Vishay  - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - capacitor 2200uf 40V Vishay Axial
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for MAL211817222E3
  • Part Number MAL211817222E3
  • Manufacturer Vishay
  • Pin Count 2
  • Part Category Capacitor
  • Package Category Capacitors, Polarized Axial Diameter Horizontal Mounting
  • Footprint Name Capacitors, Polarized Axial Diameter Horizontal Mounting - capacitor 2200uf 40V Vishay Axial
  • Released Date Dec 5, 2016
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)

MAL211817222E3 Details

  • Manufacturer Part Number:

    MAL211817222E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Factory Lead Time:

    7 Weeks, 3 Days

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: IEC60384-4

  • Capacitance:

    2200 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    21 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    105 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.532 mA

  • Length:

    38 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    40 V

  • Ripple Current:

    1540 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    WIRE

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAL211817222E3 Overview

Use the download button to access the MAL211817222E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL21, or try a keyword search, such as Aluminum Electrolytic Capacitors
