MAL211892101E3 - Vishay

Description: Aluminum Electrolytic Capacitors - Axial Leaded 100uF 200V 20% 21x38mm Axial

Download MAL211892101E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

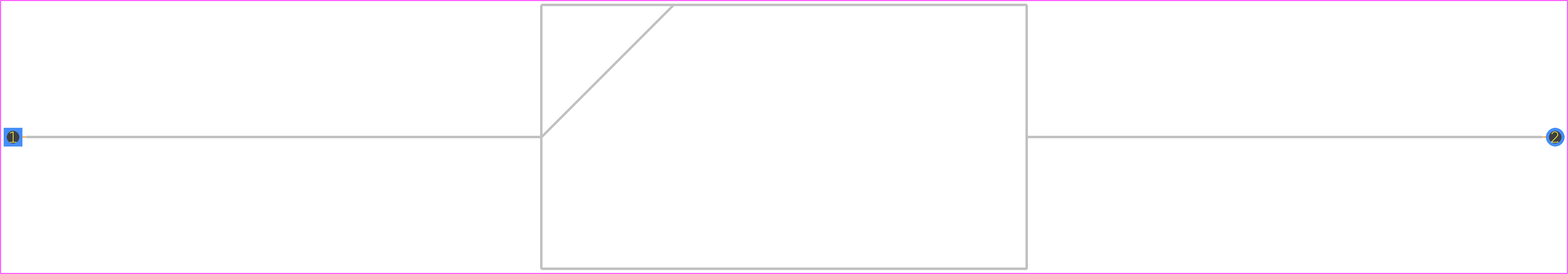

MAL211892101E3 - Vishay PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - MAL211892101E3
click to zoom
3D Models
MAL211892101E3 - Vishay  - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - MAL211892101E3
click to zoom

MAL211892101E3 Details

  • Manufacturer Part Number:

    MAL211892101E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    compliant

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.35

  • Additional Feature:

    STANDARD: IEC60384-4

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    21 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    960 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.124 mA

  • Length:

    38 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    200 V

  • Ripple Current:

    610 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.046

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    WIRE
