MAL212017102E3 - Vishay

Description: CAP ALUM 1000UF 20% 40V AXIAL

Download MAL212017102E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL212017102E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

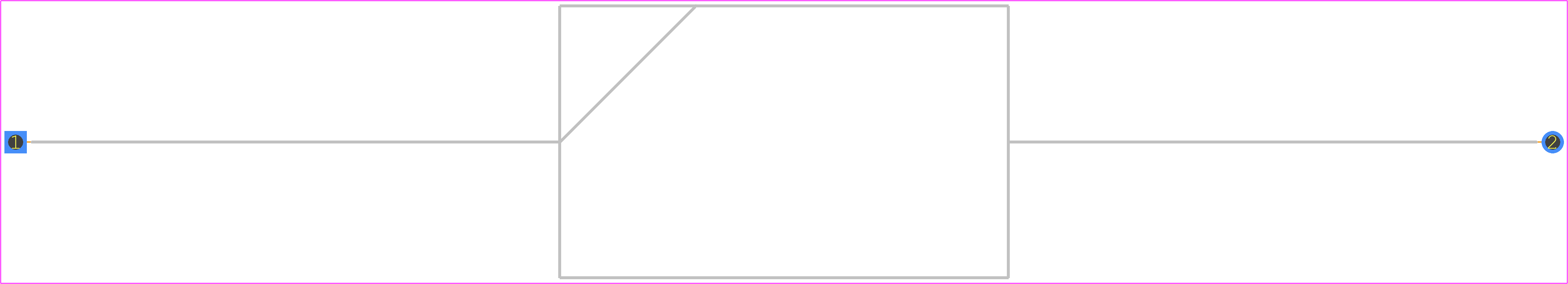

MAL212017102E3 - Vishay PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 18x30
click to zoom
3D Models
MAL212017102E3 - Vishay - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 18x30
click to zoom

MAL212017102E3 Details

  • Manufacturer Part Number:

    MAL212017102E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.01

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    18.5 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    99 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.52 mA

  • Length:

    30.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    40 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    1984.5 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    35 mm

  • Terminal Shape:

    WIRE

MAL212017102E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL212017102E3 is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
  • MAL212017102E3 has a high power rating, so it's essential to ensure good thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the component.
  • The maximum operating temperature range for MAL212017102E3 is -55°C to +150°C, but it's recommended to operate within -40°C to +125°C for optimal performance and reliability.
  • Yes, MAL212017102E3 is designed to withstand high-vibration environments. However, it's essential to ensure that the component is properly secured to the PCB using a suitable adhesive or mechanical fastening method.
  • To ensure the reliability of MAL212017102E3 in a humid environment, it's recommended to apply a conformal coating to the PCB, use a moisture-resistant packaging, and follow proper storage and handling procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAL212017102E3 Overview

Use the download button to access the MAL212017102E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL21, or try a keyword search, such as Aluminum Electrolytic Capacitors
