MAL213651471E3 - Vishay

Description: Aluminum Electrolytic Capacitors - Radial Leaded 470uF 50V 20% Radial

Download MAL213651471E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL213651471E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

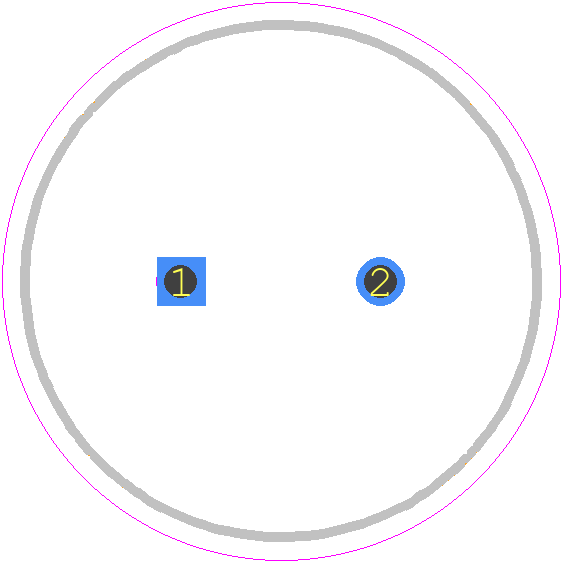

MAL213651471E3 - Vishay PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - CASE CODE 12.5X25 HEIGHT 27
click to zoom
3D Models
MAL213651471E3 - Vishay - 3D model - Capacitor, Polarized Radial Diameter - CASE CODE 12.5X25 HEIGHT 27
click to zoom

MAL213651471E3 Details

  • Manufacturer Part Number:

    MAL213651471E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    12.5 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.24 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    750 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.10

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE
