MAL213818681E3 footprint, schematic symbol and 3D model by Vishay

Symbol

click to zoom

PCB Footprints

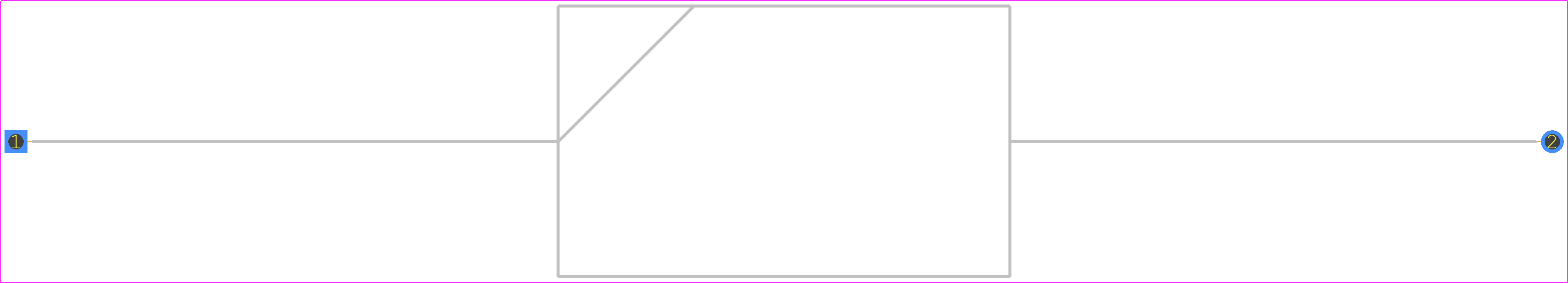

MAL213818681E3 - Vishay PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 18 x 30

click to zoom

3D Models

MAL213818681E3 - Vishay - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 18 x 30

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAL213818681E3
Part Number MAL213818681E3
Manufacturer Vishay
Pin Count 2
Part Category Capacitor Polarised
Package Category Capacitors, Polarized Axial Diameter Horizontal Mounting
Footprint Name Capacitors, Polarized Axial Diameter Horizontal Mounting - 18 x 30
Released Date Jun 13, 2024
Last Modified Date Jun 25, 2024 8:10 AM UTC
Pinout / Pin List Click Here (Member Only)

MAL213818681E3 Details

Manufacturer Part Number:
MAL213818681E3
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
AXIAL LEADED
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8532.22.00.40
Factory Lead Time:
6 Weeks
Manufacturer:
Vishay Intertechnologies
YTEOL:
6
Capacitance:
680 µF
Capacitor Type:
ALUMINUM ELECTROLYTIC CAPACITOR
Diameter:
18.5 mm
Dielectric Material:
ALUMINUM (WET)
ESR:
190 mΩ
JESD-609 Code:
e3
Leakage Current:
0.09 mA
Length:
30.5 mm
Mounting Feature:
THROUGH HOLE MOUNT
Negative Tolerance:
20%
Number of Terminals:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Shape:
TUBULAR PACKAGE
Package Style:
Axial
Packing Method:
BULK
Polarity:
POLARIZED
Positive Tolerance:
20%
Rated (DC) Voltage (URdc):
63 V
Ripple Current:
1130 mA
Surface Mount:
NO
Tan Delta:
0.12
Terminal Finish:
Matte Tin (Sn)
Terminal Pitch:
35 mm
Terminal Shape:
WIRE
