The recommended land pattern for MAL214099013E3 can be found in the Vishay Intertechnologies' land pattern recommendation document, which provides detailed information on pad layout, spacing, and dimensions for optimal assembly and reliability.
MAL214099013E3 is a moisture-sensitive device. To prevent damage, it's essential to follow proper handling and storage procedures, such as storing the components in a dry, nitrogen-filled environment, and using a baking process before reflow soldering if the components have been exposed to moisture.
The maximum reflow temperature for MAL214099013E3 is 260°C, with a peak temperature not exceeding 240°C for a maximum of 20 seconds. Exceeding this temperature can cause damage to the component.
While MAL214099013E3 is designed to be robust, it's essential to consider the component's vibration sensitivity in high-vibration applications. Vishay Intertechnologies recommends consulting their application notes and performing thorough testing to ensure the component's reliability in such environments.
To troubleshoot issues with MAL214099013E3, start by consulting the datasheet and application notes. Check for proper component orientation, soldering, and assembly. If issues persist, contact Vishay Intertechnologies' technical support or consult with a qualified engineer for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAL214099013E3 Overview

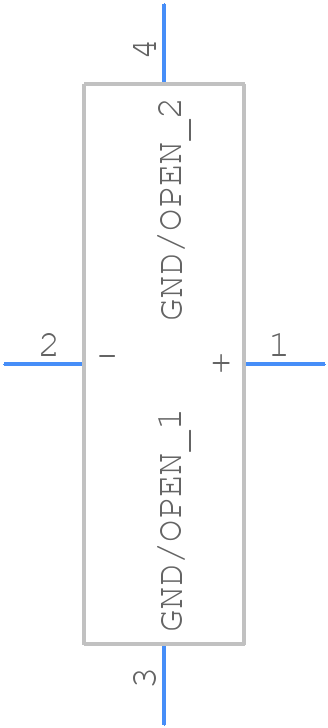

Use the download button to access the MAL214099013E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL21,
or try a keyword search, such as Aluminum Electrolytic Capacitors
