MAL214699712E3 - Vishay

MAL214699712E3 Frequently Asked Questions (FAQs)

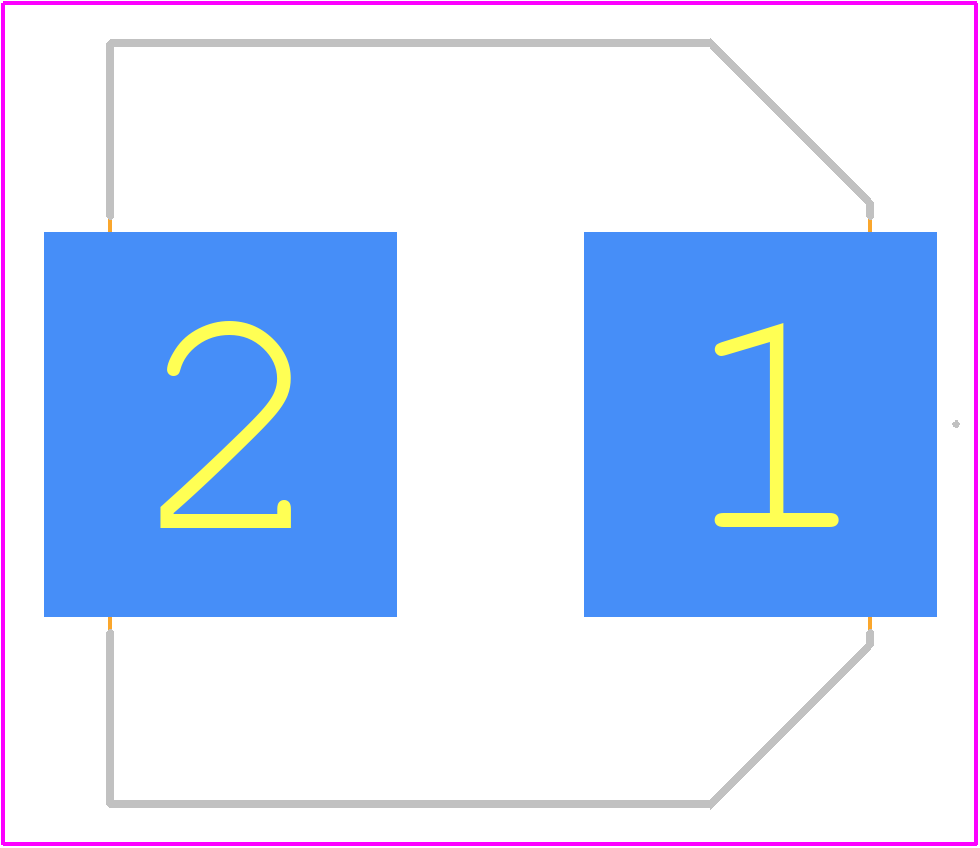

• What is the recommended land pattern for MAL214699712E3?
  The recommended land pattern for MAL214699712E3 can be found in the Vishay Intertechnologies' application note AN483, which provides guidelines for surface mount assembly of Vishay's inductors.
• How do I handle the component during assembly to prevent damage?
  To prevent damage, handle the MAL214699712E3 component by the body, avoiding touching the leads or the core. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage.
• What is the thermal resistance of the MAL214699712E3?
  The thermal resistance of the MAL214699712E3 is not explicitly stated in the datasheet. However, according to Vishay's application note AN106, the thermal resistance of similar inductors is typically around 10-20°C/W. Consult with Vishay's support team for specific information.
• Can I use the MAL214699712E3 in a high-vibration environment?
  The MAL214699712E3 is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult with Vishay's support team to determine the component's suitability and potential derating requirements.
• How do I determine the saturation current of the MAL214699712E3?
  The saturation current of the MAL214699712E3 can be determined by consulting the inductor's BH curve, which is typically provided in the datasheet or upon request from Vishay's support team. The BH curve shows the relationship between the inductor's magnetic field strength and the current flowing through it.
