MAL214699812E3 - Vishay

Description: 680 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 125°C

Download MAL214699812E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL214699812E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

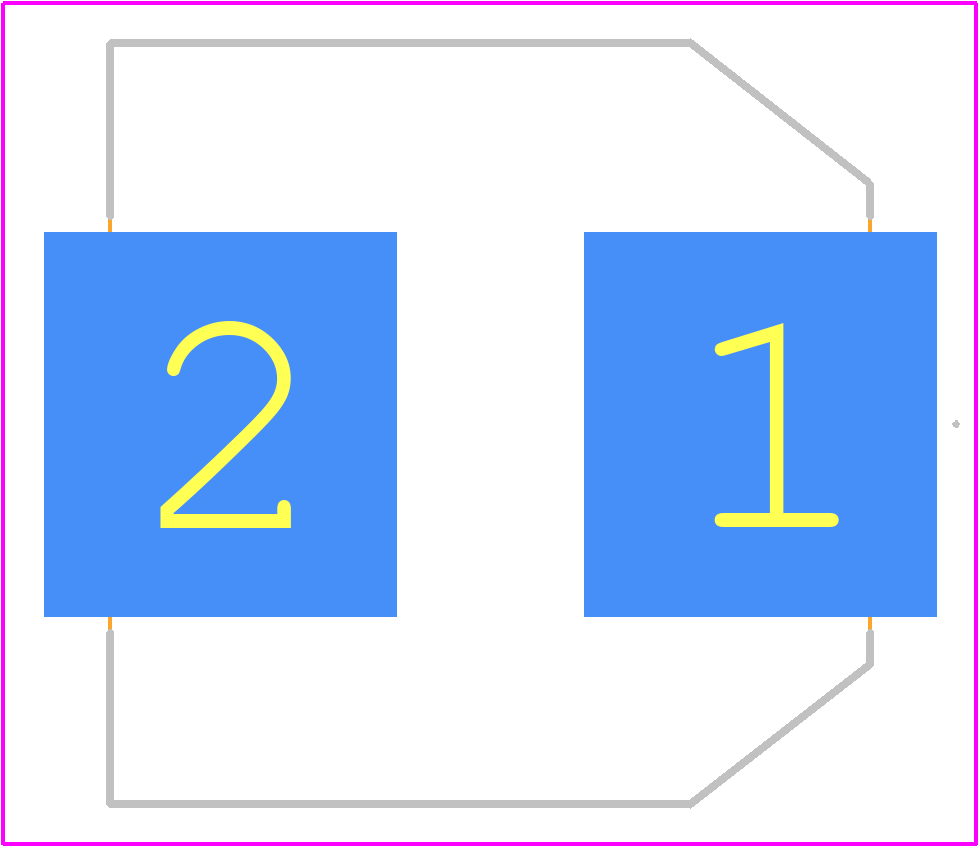

MAL214699812E3 - Vishay PCB footprint - Other - Other - 1816
click to zoom
3D Models
MAL214699812E3 - Vishay - 3D model - Other - 1816
click to zoom

MAL214699812E3 Details

  • Manufacturer Part Number:

    MAL214699812E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Capacitance:

    680 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    18 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    16 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.428 mA

  • Length:

    18 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, BLISTER, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    690 mA

  • Size Code:

    7171

  • Surface Mount:

    YES

  • Tan Delta:

    0.1

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    18 mm

MAL214699812E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL214699812E3 can be found in the Vishay Intertechnologies' application note AN483, which provides guidelines for surface-mount assembly of ceramic chip capacitors.
  • To prevent damage, handle the MAL214699812E3 component by the edges, avoid touching the electrodes, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD).
  • The maximum voltage derating for MAL214699812E3 is typically 80% of the rated voltage, but it's recommended to consult the datasheet and application notes for specific derating guidelines.
  • MAL214699812E3 is rated for operation up to 125°C, but it's essential to consider the component's temperature coefficient, thermal stress, and potential degradation when used in high-temperature applications.
  • To ensure reliability in humid environments, follow the recommended storage and handling procedures, and consider using conformal coatings or potting compounds to protect the component from moisture.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAL214699812E3 Overview

Use the download button to access the MAL214699812E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL21, or try a keyword search, such as Aluminum Electrolytic Capacitors
