The recommended land pattern for MAL215737101E3 can be found in Vishay's application note AN1033, which provides guidelines for surface-mount assembly of Vishay's metal film resistors.
To prevent damage, handle the MAL215737101E3 by the body, avoiding touching the leads or the resistor element. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage.
The maximum power rating for the MAL215737101E3 decreases with increasing temperature. Consult Vishay's application note AN20005, which provides derating curves for metal film resistors, to determine the maximum power rating at a specific temperature.
The MAL215737101E3 is not suitable for use in high-humidity environments. Vishay recommends using their moisture-resistant resistors, such as the MELF or MIL-R-39005 series, for applications requiring high humidity resistance.
Use a soldering iron with a temperature of 260°C to 300°C (500°F to 572°F) and a solder with a melting point of 180°C to 220°C (356°F to 428°F). Apply a small amount of solder to the lead, and avoid using excessive force or bending the leads during soldering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAL215737101E3 Overview

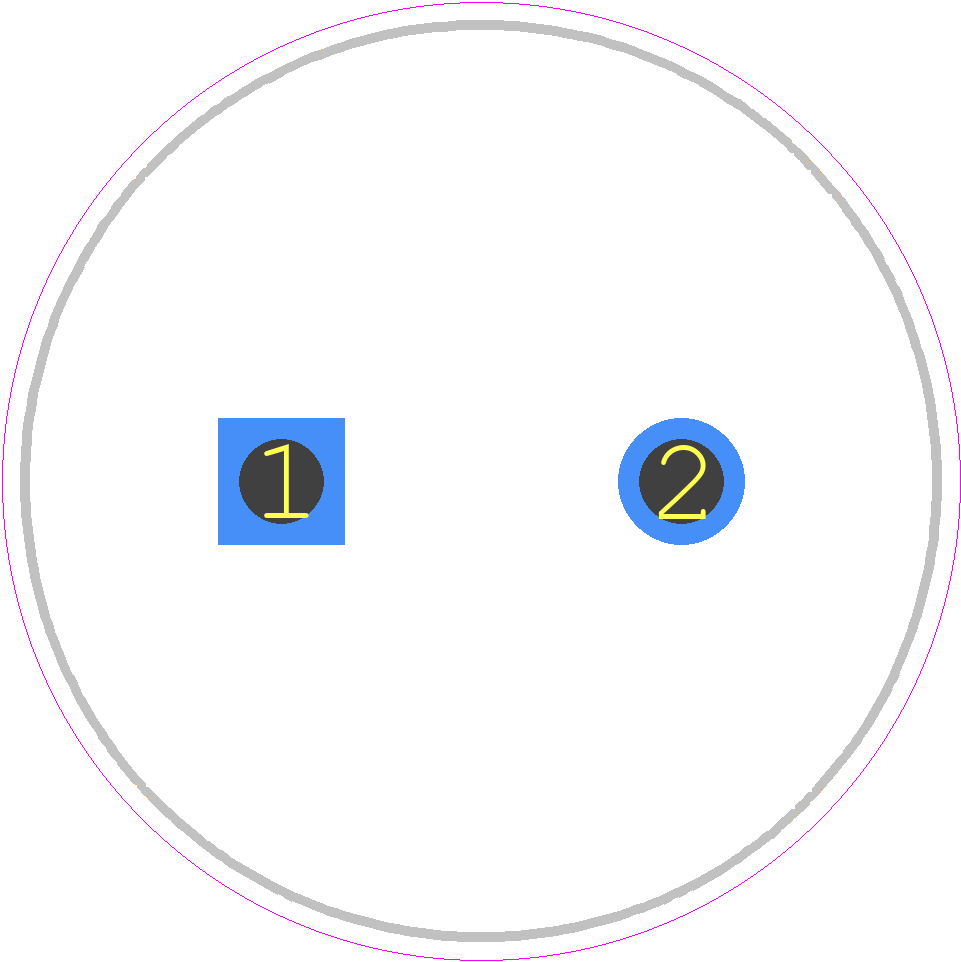

Use the download button to access the MAL215737101E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL21,
or try a keyword search, such as Aluminum Electrolytic Capacitors
