MAL215759689E3 - Vishay

Description: 68 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2.45Ohm @ 100Hz 3000 Hrs @ 85°C

Download MAL215759689E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL215759689E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

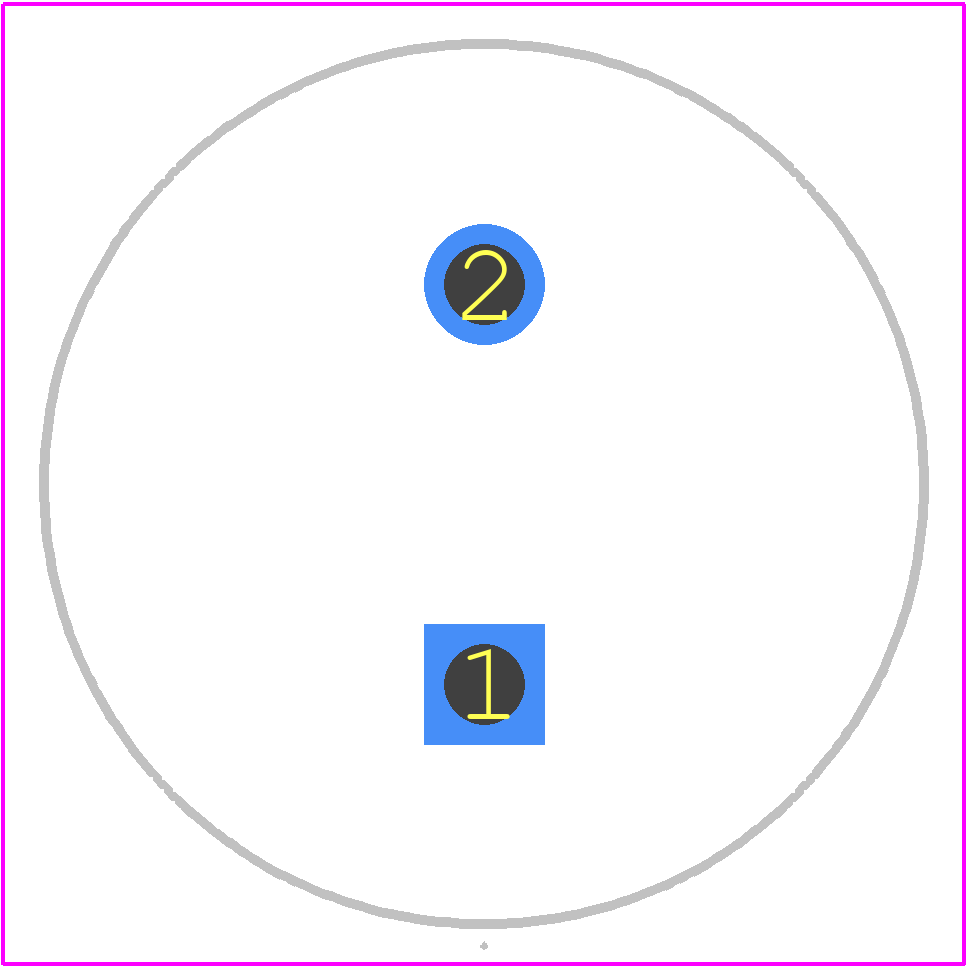

MAL215759689E3 - Vishay PCB footprint - Other - Other - MAL215759689E3-3
click to zoom

MAL215759689E3 Details

  • Manufacturer Part Number:

    MAL215759689E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    68 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    2450 mΩ

  • Leakage Current:

    0.34 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    500 V

  • Ripple Current:

    850 mA

  • Surface Mount:

    NO

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

MAL215759689E3 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for MAL215759689E3 is -40°C to +125°C.
  • Yes, the MAL215759689E3 component is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The maximum operating voltage for MAL215759689E3 is 50V.
  • While MAL215759689E3 is suitable for high-frequency applications, its performance may degrade above 100 kHz. It's recommended to consult with a Vishay Intertechnologies representative or a qualified engineer for specific high-frequency application guidance.
  • To prevent damage during assembly, handle the MAL215759689E3 component by the body, avoiding touching the leads or the component's surface. Use anti-static wrist straps, mats, or other ESD protection devices to prevent electrostatic discharge damage.
