MAL215919101E3 - Vishay

Description: Vishay 100μF 500V dc Aluminium Capacitor 22 (Dia.) x 40mm +105°C 22mm 10mm 40mm

Download MAL215919101E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL215919101E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

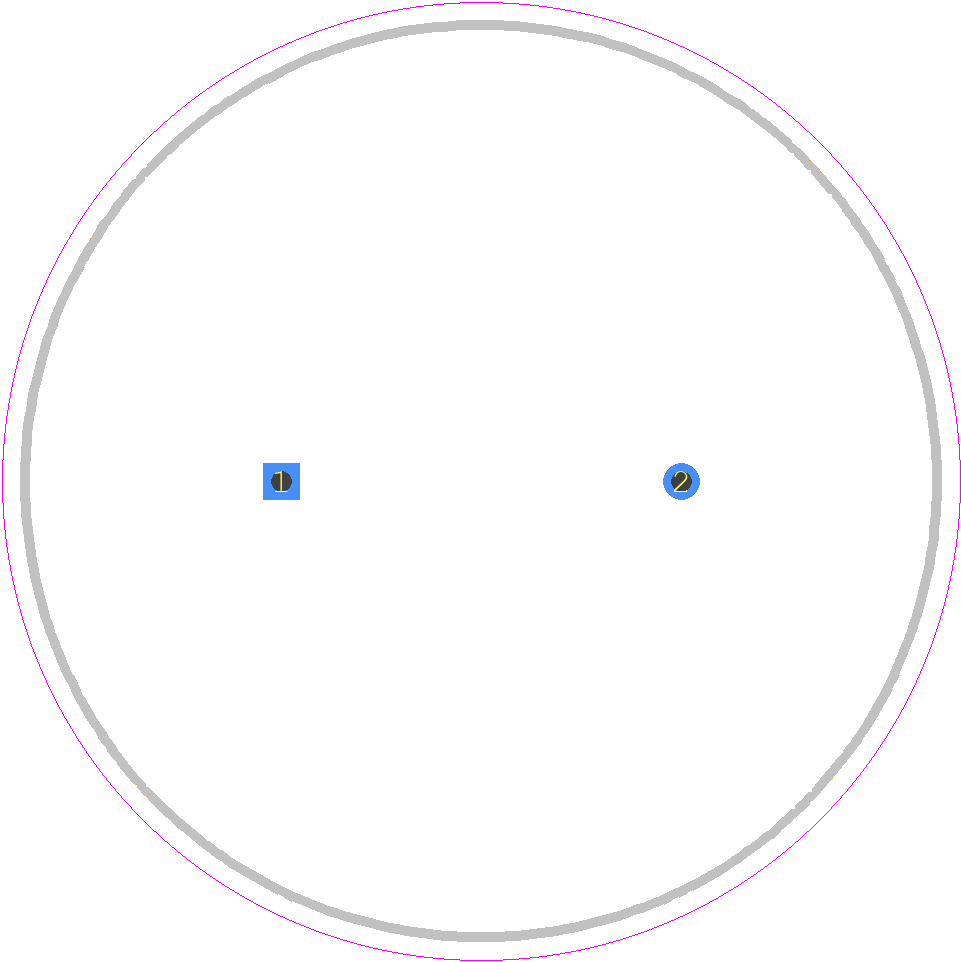

MAL215919101E3 - Vishay PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22*40
click to zoom
3D Models
MAL215919101E3 - Vishay - 3D model - Capacitor, Polarized Radial Diameter - 22*40
click to zoom

MAL215919101E3 Details

  • Manufacturer Part Number:

    MAL215919101E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    1300 mΩ

  • Leakage Current:

    0.5 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    No

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    500 V

  • Ripple Current:

    800 mA

  • Surface Mount:

    NO

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

MAL215919101E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL215919101E3 can be found in Vishay's application note AN10395, which provides guidelines for surface-mount assembly of Vishay's inductors.
  • To prevent damage, handle the MAL215919101E3 by the body, avoiding touching the leads or the core. Use a vacuum pickup or tweezers to handle the component, and avoid bending or flexing the leads.
  • The thermal resistance of the MAL215919101E3 is not explicitly stated in the datasheet. However, according to Vishay's application note AN1004, the thermal resistance of similar inductors is typically around 20-30°C/W.
  • The MAL215919101E3 is rated for operation up to 125°C. However, derating may be necessary for high-temperature applications. Consult Vishay's application note AN1004 for guidance on temperature derating.
  • The saturation current of the MAL215919101E3 can be determined by consulting Vishay's application note AN1003, which provides guidelines for inductor saturation current measurement.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
