MAL215947331E3 - Vishay

Description: VISHAY - MAL215947331E3 - Electrolytic Capacitor, Snap-in, 330 µF, 450 V, ± 20%, Quick Connect, Snap-In, 5000 hours @ 105°C

Download MAL215947331E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL215947331E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

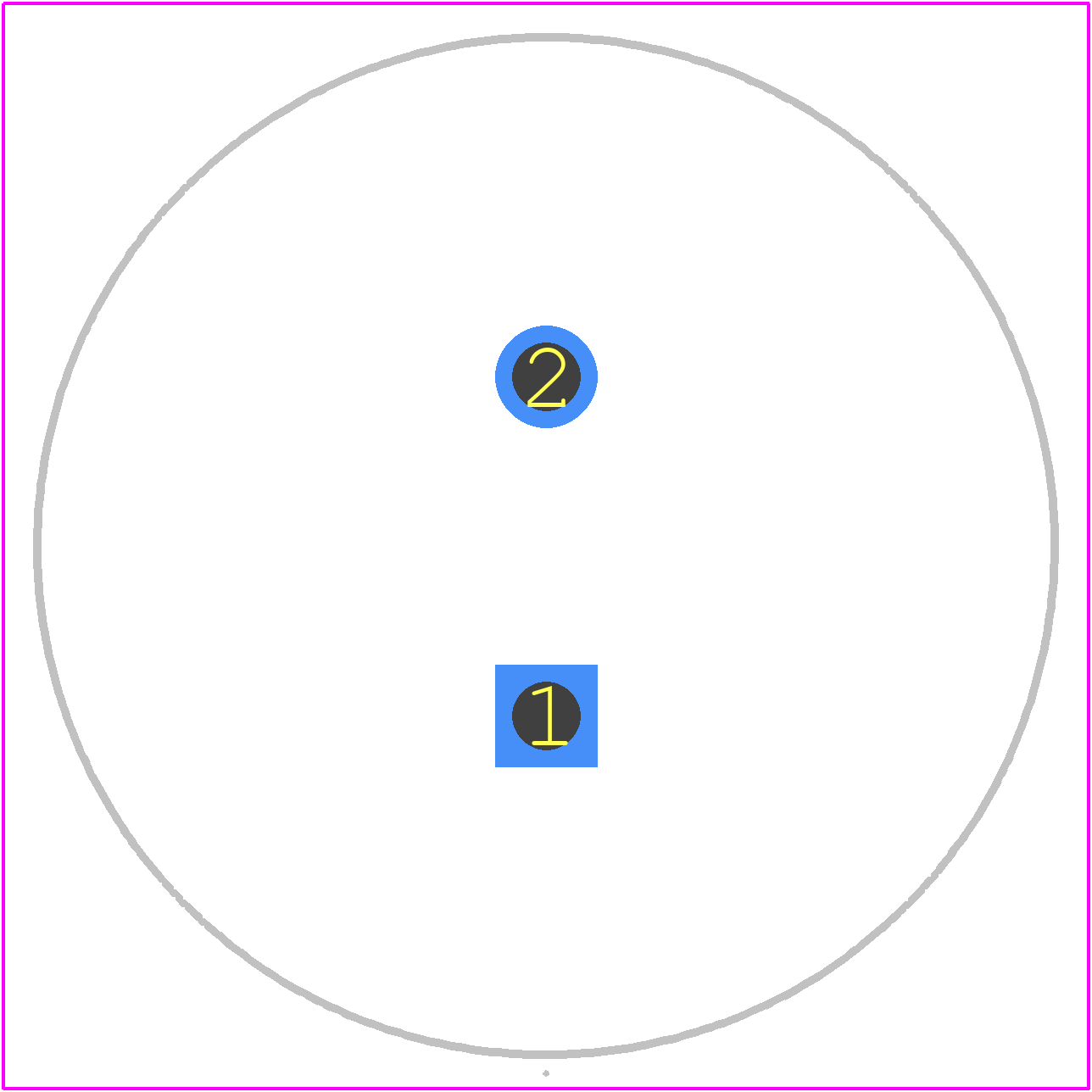

MAL215947331E3 - Vishay PCB footprint - Other - Other - MAL215947331E3-1
click to zoom
3D Models
MAL215947331E3 - Vishay - 3D model - Other - MAL215947331E3-1
click to zoom

MAL215947331E3 Details

  • Manufacturer Part Number:

    MAL215947331E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    330 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    600 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.48 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    No

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1540 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN
