MAL215947689E3 - Vishay

Description: Vishay Extreme 68μF 450 V Aluminium Electrolytic Capacitor, 159 PUL-SI Series 2000 h, 5000 h, 500000 h 22 (Dia.) x 30mm

Download MAL215947689E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL215947689E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

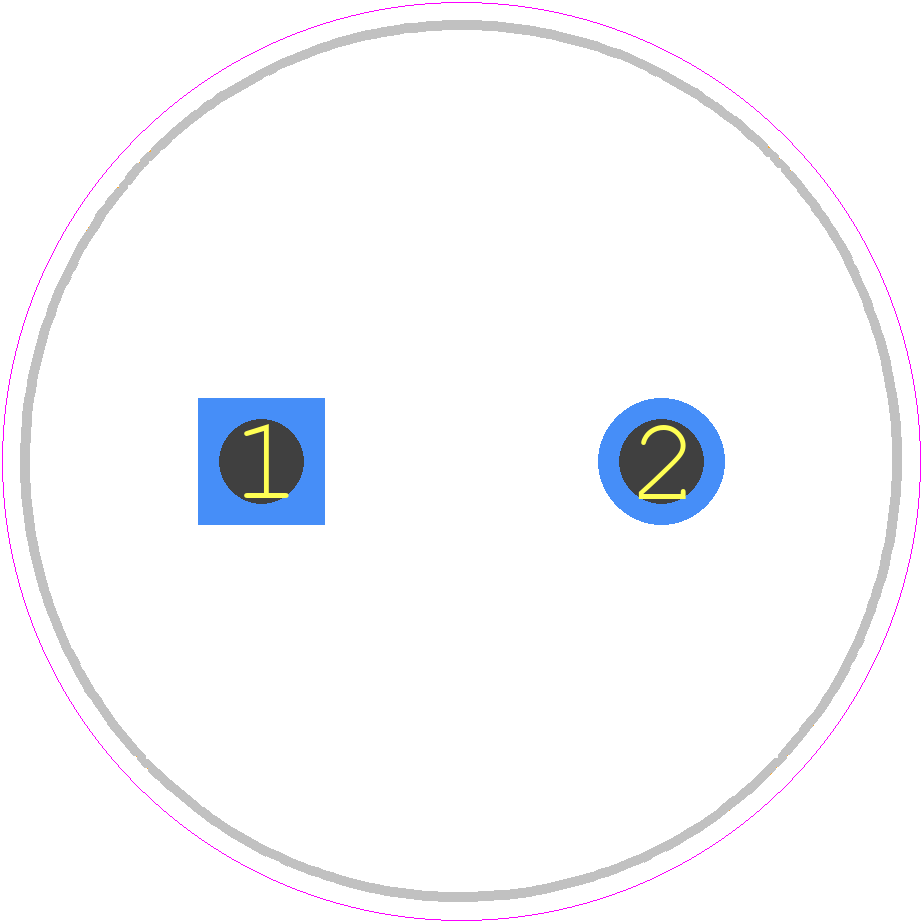

MAL215947689E3 - Vishay PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22*30
click to zoom
3D Models
MAL215947689E3 - Vishay - 3D model - Capacitor, Polarized Radial Diameter - 22*30
click to zoom

MAL215947689E3 Details

  • Manufacturer Part Number:

    MAL215947689E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    68 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    2400 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.3 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    No

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    560 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

MAL215947689E3 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for MAL215947689E3 is -40°C to 125°C.
  • Yes, the MAL215947689E3 component is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The maximum operating voltage for MAL215947689E3 is 50V.
  • While the MAL215947689E3 is suitable for high-frequency applications, its performance may degrade above 100 kHz. It's recommended to consult with a Vishay Intertechnologies representative or perform thorough testing to ensure the component meets your specific requirements.
  • To prevent damage during assembly, handle the MAL215947689E3 component by the body, avoid touching the leads or component termination, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAL215947689E3 Overview

Use the download button to access the MAL215947689E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL21, or try a keyword search, such as Aluminum Electrolytic Capacitors
