The recommended land pattern for MAL215959121E3 can be found in Vishay's application note AN483, which provides guidelines for surface-mount assembly of Vishay's inductors.
The MAL215959121E3 has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to consider thermal management by providing adequate airflow, using thermal interfaces, and keeping the component away from heat sources.
The SRF of the MAL215959121E3 is not explicitly stated in the datasheet. However, it can be estimated using the inductor's inductance and capacitance values. Typically, the SRF is around 100-200 MHz for this type of inductor.
The MAL215959121E3 is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consider additional mechanical support or use a more ruggedized inductor design.
To ensure reliability, store the MAL215959121E3 in a dry, cool place, away from direct sunlight and moisture. Follow Vishay's storage guidelines, and avoid exposing the component to temperatures above 40°C for extended periods.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAL215959121E3 Overview

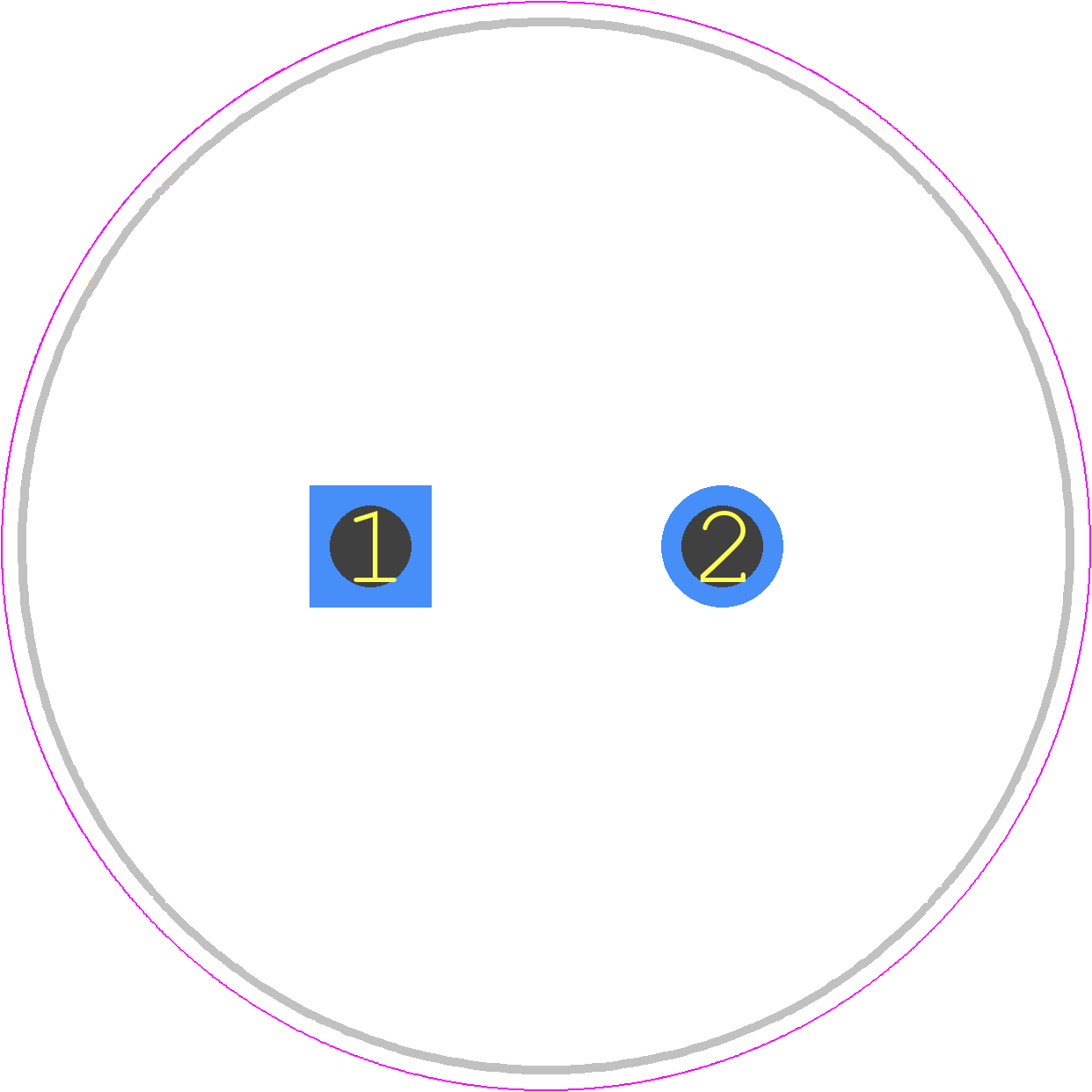

Use the download button to access the MAL215959121E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL21,
or try a keyword search, such as Aluminum Electrolytic Capacitors
