MAL215959471E3 - Vishay

Description: Electrolytic Capacitor, Snap-in, 470 µF, 500 V, ± 20%, Snap-In, 5000 hours @ 105°C

Download MAL215959471E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL215959471E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

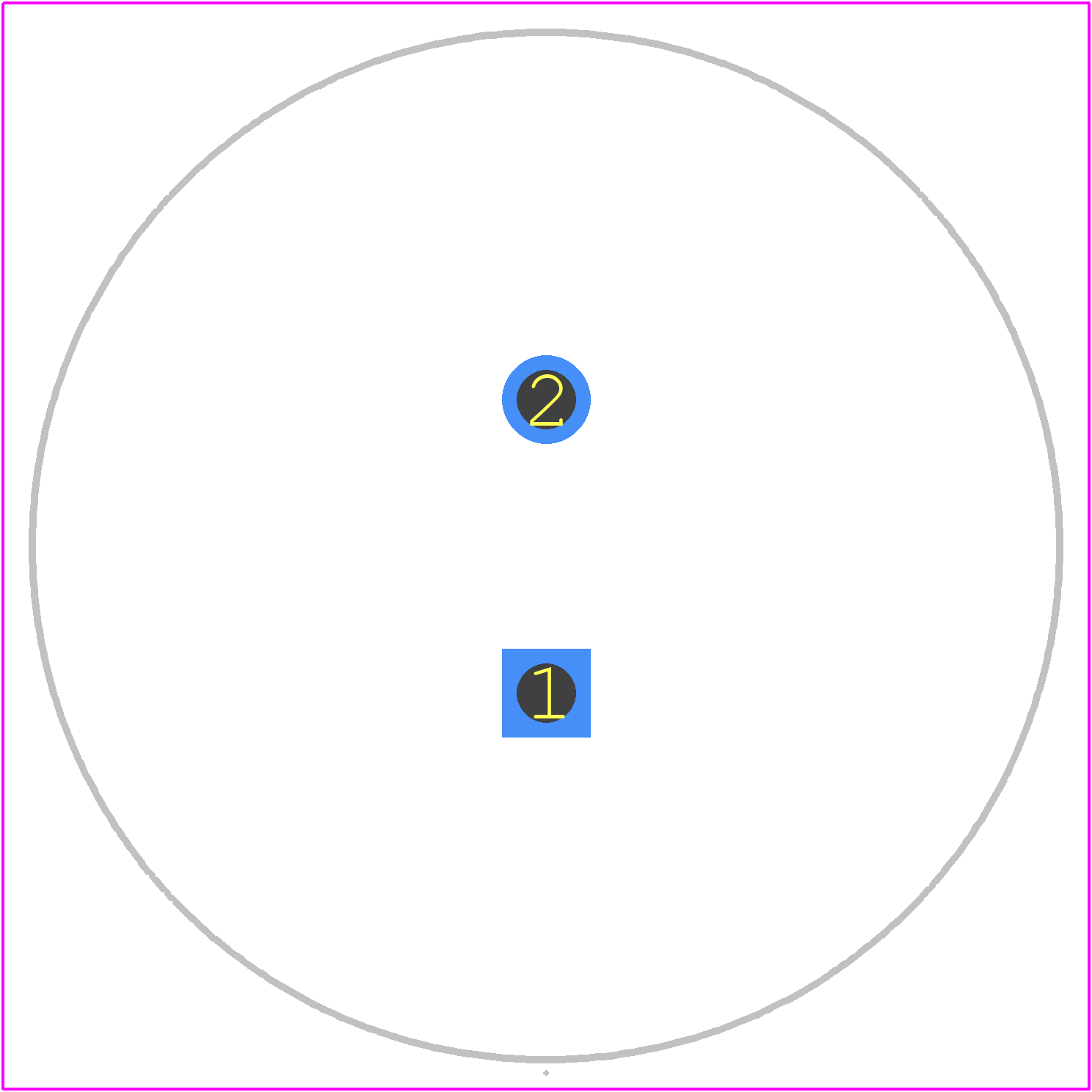

MAL215959471E3 - Vishay PCB footprint - Other - Other - 35mm x 55mm
click to zoom
3D Models
MAL215959471E3 - Vishay - 3D model - Other - 35mm x 55mm
click to zoom

MAL215959471E3 Details

  • Manufacturer Part Number:

    MAL215959471E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    320 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.35 mA

  • Length:

    55 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    500 V

  • Ripple Current:

    2150 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    SNAP-IN

MAL215959471E3 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for MAL215959471E3 is -40°C to +125°C.
  • Yes, the MAL215959471E3 component is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The maximum operating voltage for MAL215959471E3 is 50V.
  • While the MAL215959471E3 is suitable for high-frequency applications, its performance may degrade above 100 kHz. It's recommended to consult with a Vishay Intertechnologies representative or perform thorough testing to ensure the component meets your specific requirements.
  • To prevent damage during assembly, handle the MAL215959471E3 component by the body, avoid touching the leads or component terminals, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD).
