The recommended land pattern for MAL219356681E3 can be found in the Vishay Intertechnologies' land pattern recommendation document, which provides detailed information on pad layout, spacing, and dimensions for optimal assembly and reliability.
MAL219356681E3 is a moisture-sensitive device. To prevent damage, it's essential to follow proper handling and storage procedures, such as storing the components in a dry, nitrogen-filled environment, and using a baking process before reflow soldering if the components have been exposed to moisture.
The maximum reflow temperature for MAL219356681E3 is 260°C, with a peak temperature not exceeding 240°C for a maximum of 20 seconds. Exceeding this temperature can cause damage to the component.
MAL219356681E3 is designed to withstand moderate vibration levels. However, for high-vibration applications, it's recommended to consult with Vishay Intertechnologies' application engineers to determine the component's suitability and potential modifications to the design or assembly process.
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating guidelines, ensure proper thermal management, and consider using thermal interface materials to reduce thermal resistance. Additionally, consult with Vishay Intertechnologies' application engineers for specific guidance on high-temperature applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAL219356681E3 Overview

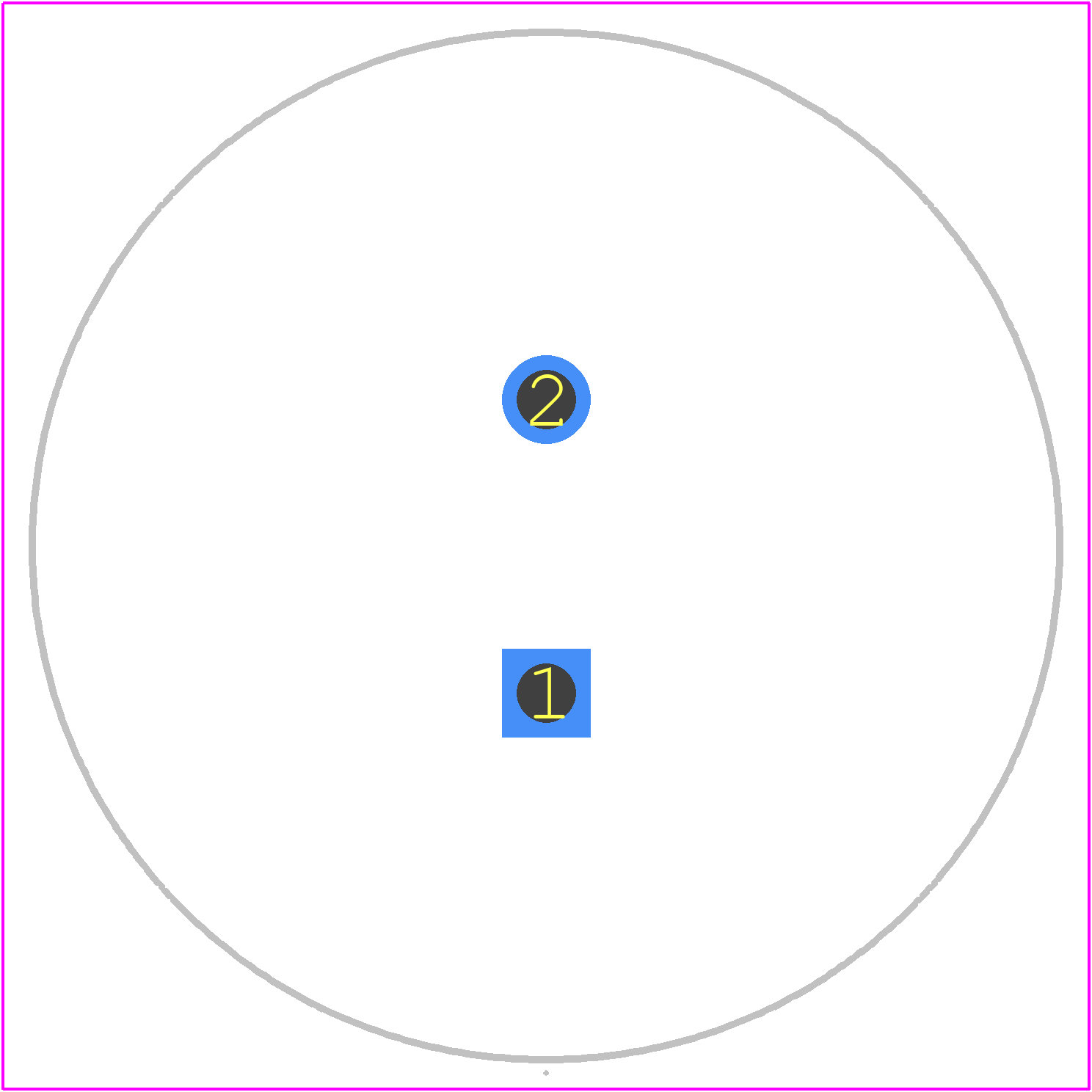

Use the download button to access the MAL219356681E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL21,
or try a keyword search, such as Ceramic Capacitors
