MAL219357471E3 - Vishay

Description: 470 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 180mOhm @ 100Hz 5000 Hrs , -40°C ~ 105°C

Download MAL219357471E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL219357471E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

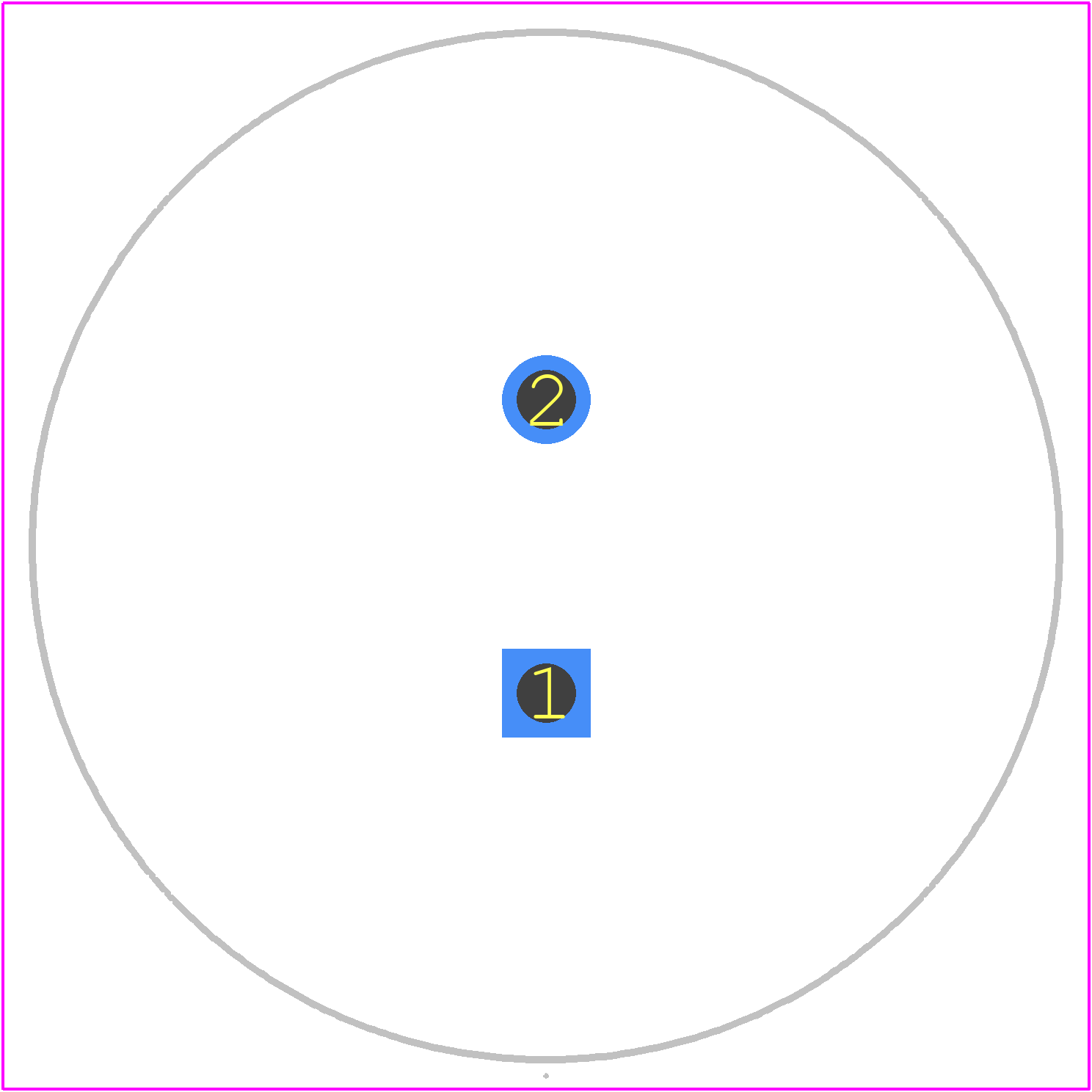

MAL219357471E3 - Vishay PCB footprint - Other - Other - 35mmX50mm_2026
click to zoom
3D Models
MAL219357471E3 - Vishay - 3D model - Other - 35mmX50mm_2026
click to zoom

MAL219357471E3 Details

  • Manufacturer Part Number:

    MAL219357471E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    180 mΩ

  • Leakage Current:

    2.12 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    2530 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.20

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

MAL219357471E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL219357471E3 can be found in Vishay's application note AN10365, which provides guidelines for surface-mount assembly of ceramic chip capacitors.
  • To prevent damage, handle the MAL219357471E3 component by the edges, avoid touching the electrodes, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD).
  • The maximum voltage derating for MAL219357471E3 is typically 80% of the rated voltage, but this may vary depending on the specific application and operating conditions. Consult Vishay's application notes or contact their technical support for more information.
  • The MAL219357471E3 is rated for operation up to 125°C, but its performance may degrade at higher temperatures. Consult Vishay's datasheet and application notes for specific guidance on high-temperature applications.
  • The ESR of MAL219357471E3 can be determined by measuring the impedance of the component at high frequencies (e.g., 100 kHz) using an impedance analyzer or a vector network analyzer. Consult Vishay's application notes or contact their technical support for more information.
