MAL219390101E3 - Vishay

Description: Aluminum Electrolytic Capacitors Power Ultra High Ripple Current Snap-In for Solar

Download MAL219390101E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL219390101E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

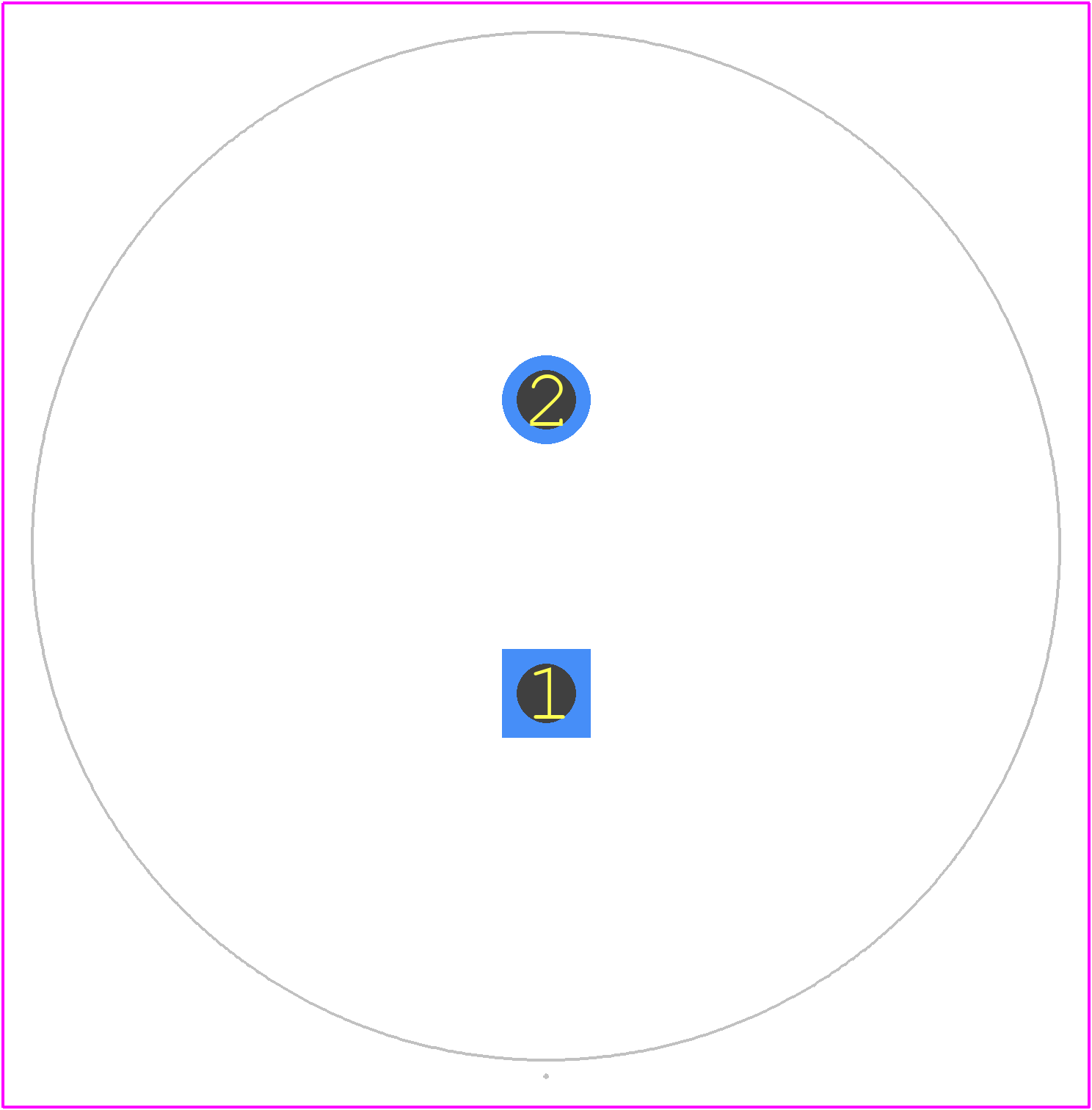

MAL219390101E3 - Vishay PCB footprint - Other - Other - MAL219390101E3-2
click to zoom
3D Models
MAL219390101E3 - Vishay - 3D model - Other - MAL219390101E3-2
click to zoom

MAL219390101E3 Details

  • Manufacturer Part Number:

    MAL219390101E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    900 mΩ

  • Leakage Current:

    0.99 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    500 V

  • Ripple Current:

    1350 mA

  • Surface Mount:

    NO

  • Terminal Shape:

    SNAP-IN

MAL219390101E3 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the MAL219390101E3 is 260°C for 10 seconds, with a peak temperature of 240°C.
  • Yes, the MAL219390101E3 is resistant to sulfurization, which means it can withstand the corrosive effects of sulfur compounds in the atmosphere.
  • Yes, the MAL219390101E3 is suitable for high-frequency applications up to 1 GHz due to its low inductance and capacitance values.
  • The power rating of the MAL219390101E3 at 70°C is 0.25 W, which is lower than the maximum power rating of 0.5 W at 25°C.
  • Yes, the MAL219390101E3 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
