MAL225615103E3 - Vishay

Description: Vishay Aluminium Electrolytic Capacitor 10000μF 16V dc 21mm Snap-In 256 Series Aluminium, Through Hole Electrolytic

Download MAL225615103E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL225615103E3 - Vishay - PCB symbol
click to zoom

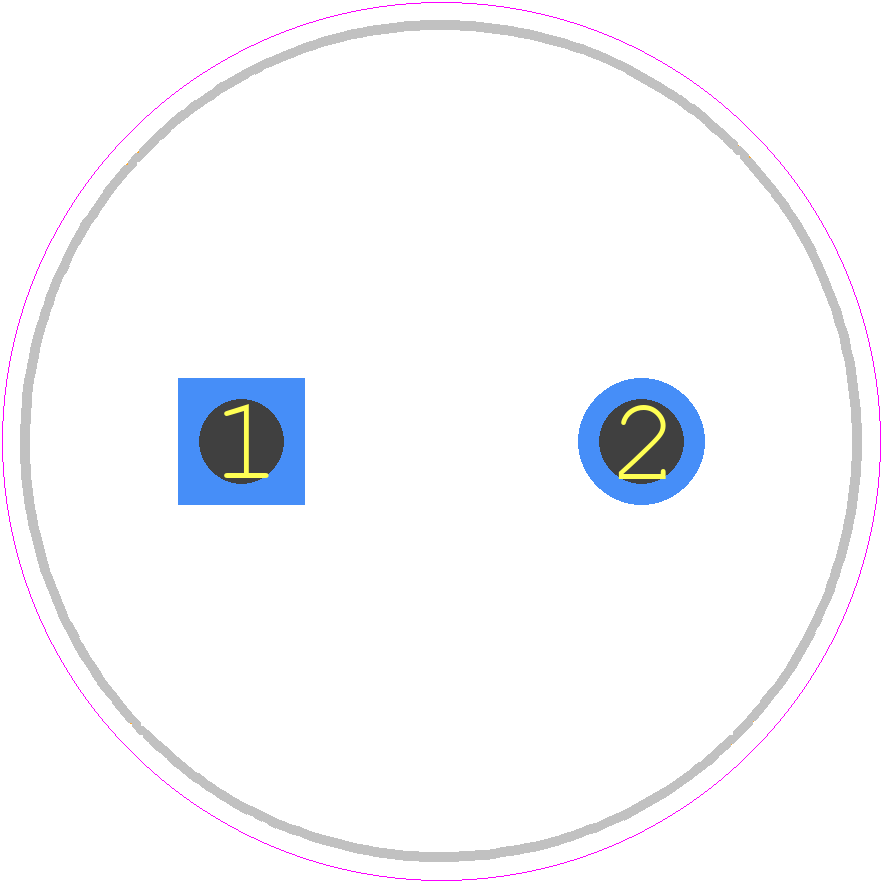

PCB Footprints
MAL225615103E3 - Vishay PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - MAL (20 x 25)
click to zoom
3D Models
MAL225615103E3 - Vishay - 3D model - Capacitor, Polarized Radial Diameter - MAL (20 x 25)
click to zoom

MAL225615103E3 Details

  • Manufacturer Part Number:

    MAL225615103E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    10000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    20 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    0.066 mΩ

  • Leakage Current:

    1.2 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Ripple Current:

    1610 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.50

  • Terminal Shape:

    SNAP-IN

MAL225615103E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL225615103E3 can be found in Vishay's application note AN10364, which provides guidelines for surface-mount assembly of Vishay's metal film resistors.
  • To prevent damage, handle the MAL225615103E3 by the body, avoiding touching the terminations. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage.
  • The maximum power rating for the MAL225615103E3 decreases with increasing temperature. Consult Vishay's application note AN20005, which provides derating curves for metal film resistors.
  • While the MAL225615103E3 is not specifically designed for high-frequency applications, it can be used up to a few hundred kHz. However, for frequencies above 1 MHz, consider using a high-frequency resistor like Vishay's HF series.
  • Consult Vishay's reliability data and testing procedures, which are available upon request. Additionally, consider performing your own reliability testing and validation to ensure the MAL225615103E3 meets your specific requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAL225615103E3 Overview

Use the download button to access the MAL225615103E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL22, or try a keyword search, such as Ceramic Capacitors
