MAL225630682E3 - Vishay

MAL225630682E3 Frequently Asked Questions (FAQs)

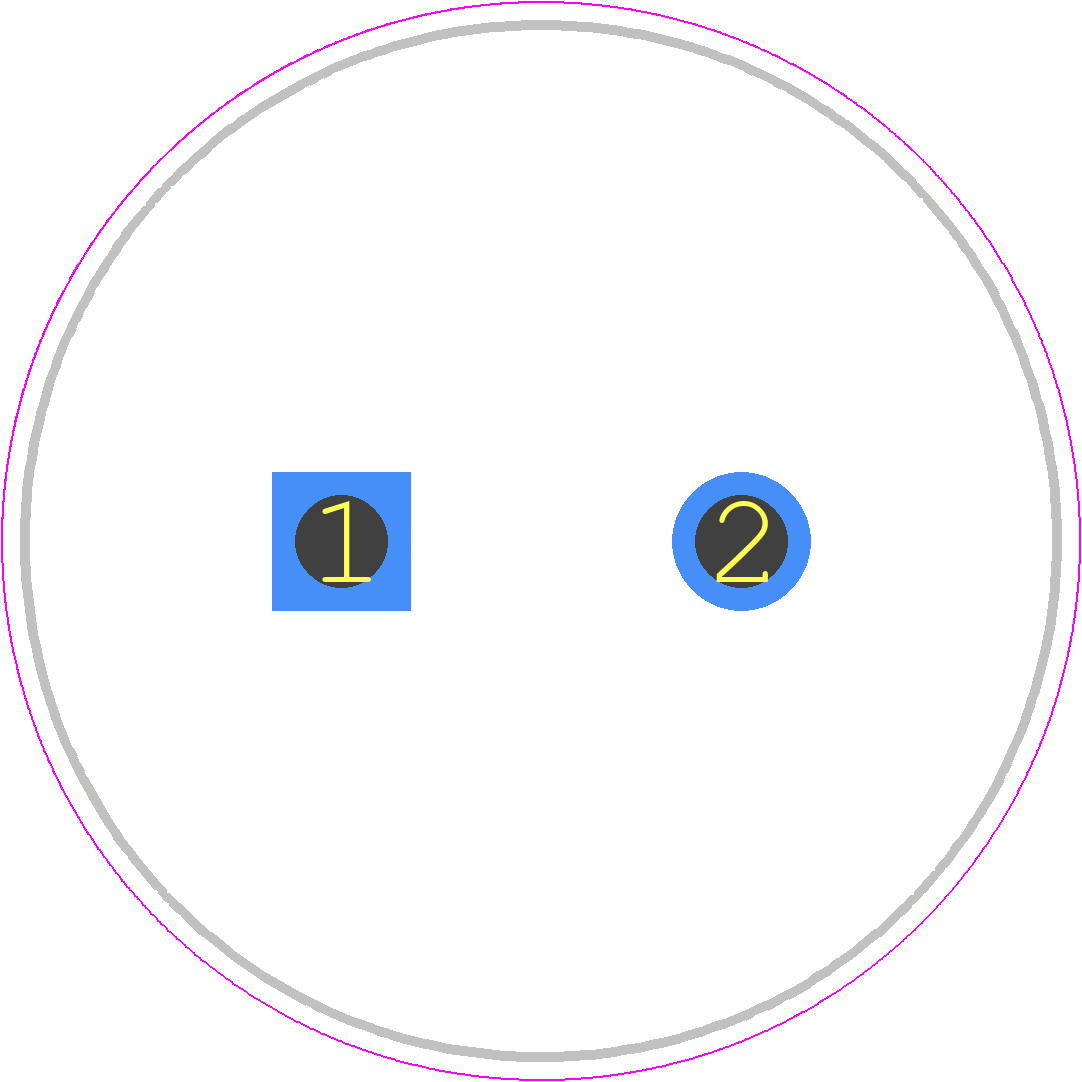

• What is the recommended land pattern for MAL225630682E3?
  The recommended land pattern for MAL225630682E3 can be found in Vishay's application note AN1033, which provides guidelines for surface-mount assembly of ceramic chip capacitors.
• How do I handle the capacitor during assembly to prevent damage?
  To prevent damage, handle the capacitor by the body, avoiding touching the terminations. Use a vacuum pickup or tweezers to handle the component, and avoid bending or flexing the leads.
• What is the maximum voltage derating for MAL225630682E3?
  The maximum voltage derating for MAL225630682E3 is typically 80% of the rated voltage. However, it's recommended to consult Vishay's application notes or contact their technical support for specific derating guidelines.
• Can I use MAL225630682E3 in high-frequency applications?
  While MAL225630682E3 is a general-purpose capacitor, it may not be suitable for high-frequency applications (>100 kHz) due to its internal construction and materials. For high-frequency applications, consider using capacitors specifically designed for high-frequency use, such as those with low equivalent series resistance (ESR) and high self-resonant frequency (SRF).
• How do I store and handle MAL225630682E3 to prevent moisture absorption?
  Store MAL225630682E3 in a dry, cool place, away from direct sunlight and moisture. Use a dry, nitrogen-filled package or a moisture barrier bag to prevent moisture absorption. Follow IPC/JEDEC J-STD-033 guidelines for handling and storage of moisture-sensitive devices.
