MAL225639222E3 - Vishay

Description: Vishay 2200μF 100 V Aluminium Electrolytic Capacitor, 256 Series 2000h 26 Dia. x 42mm

Download MAL225639222E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL225639222E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

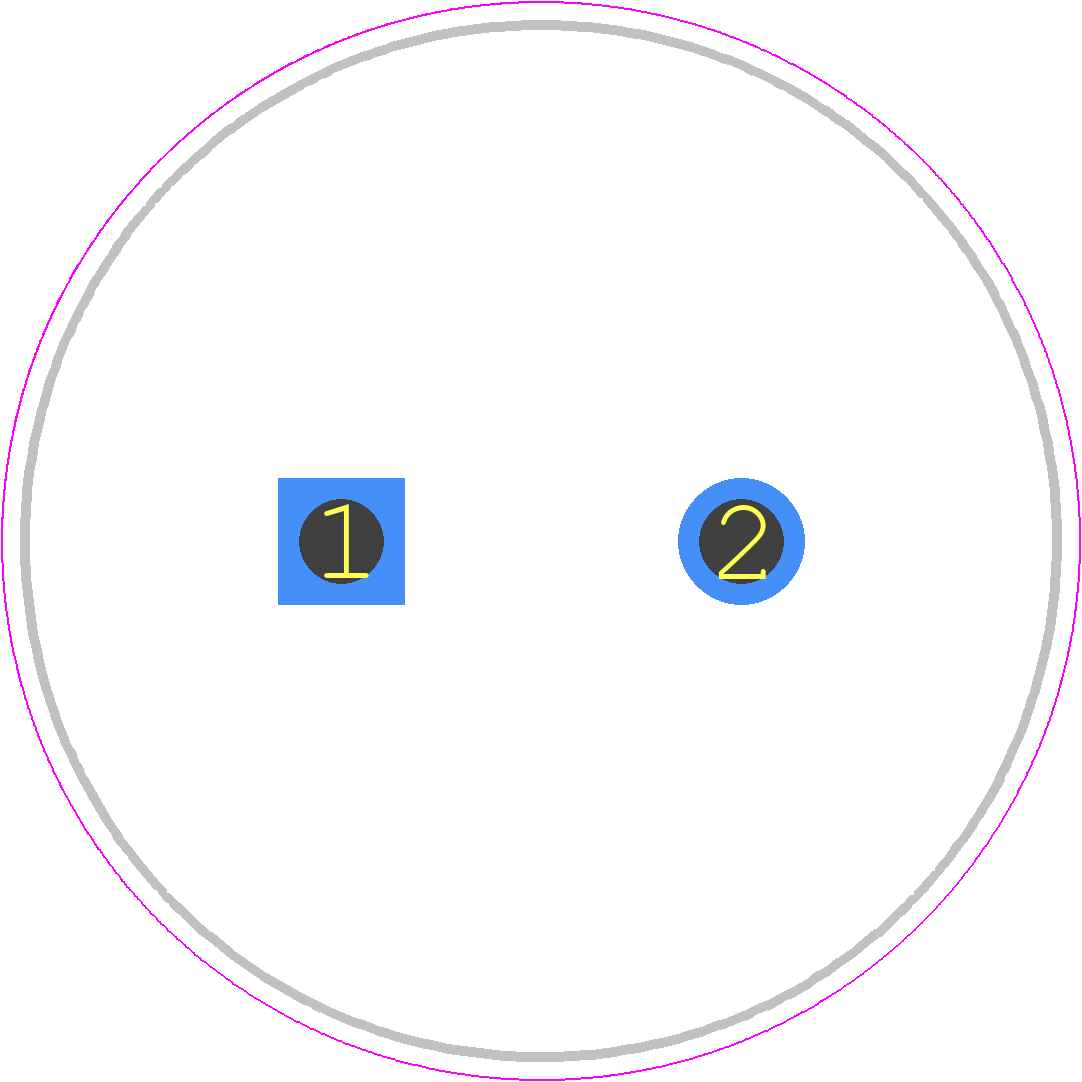

MAL225639222E3 - Vishay PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22*401
click to zoom
3D Models
MAL225639222E3 - Vishay - 3D model - Capacitor, Polarized Radial Diameter - 22*401
click to zoom

MAL225639222E3 Details

  • Manufacturer Part Number:

    MAL225639222E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    2200 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    0.121 mΩ

  • Leakage Current:

    1.41 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    2150 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.20

  • Terminal Shape:

    SNAP-IN

MAL225639222E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL225639222E3 can be found in Vishay's application note AN1033, which provides guidelines for surface-mount assembly of Vishay's aluminum electrolytic capacitors.
  • The MAL225639222E3 has a polarity marking on the capacitor body, with the positive leg marked with a '+' sign. Ensure that the capacitor is mounted with the correct polarity to avoid damage or malfunction.
  • The derating curve for the MAL225639222E3 can be found in the datasheet, which provides information on the capacitor's voltage and temperature derating. It's essential to follow the derating curve to ensure the capacitor operates within its specified ratings.
  • The MAL225639222E3 is designed to meet the vibration requirements of IEC 60068-2-6, but it's essential to evaluate the capacitor's performance in your specific application. Consider consulting with Vishay's application engineers or performing your own vibration testing to ensure the capacitor meets your requirements.
  • Store the MAL225639222E3 capacitors in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the capacitors by the body, avoiding touching the leads or terminals to prevent damage or contamination.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAL225639222E3 Overview

Use the download button to access the MAL225639222E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL22, or try a keyword search, such as Ceramic Capacitors
