MAL225646223E3 - Vishay

Description: Vishay 22000μF 25 V Aluminium Electrolytic Capacitor, 256 Series 2000h 31 Dia. x 32mm

Download MAL225646223E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL225646223E3 - Vishay - PCB symbol
click to zoom

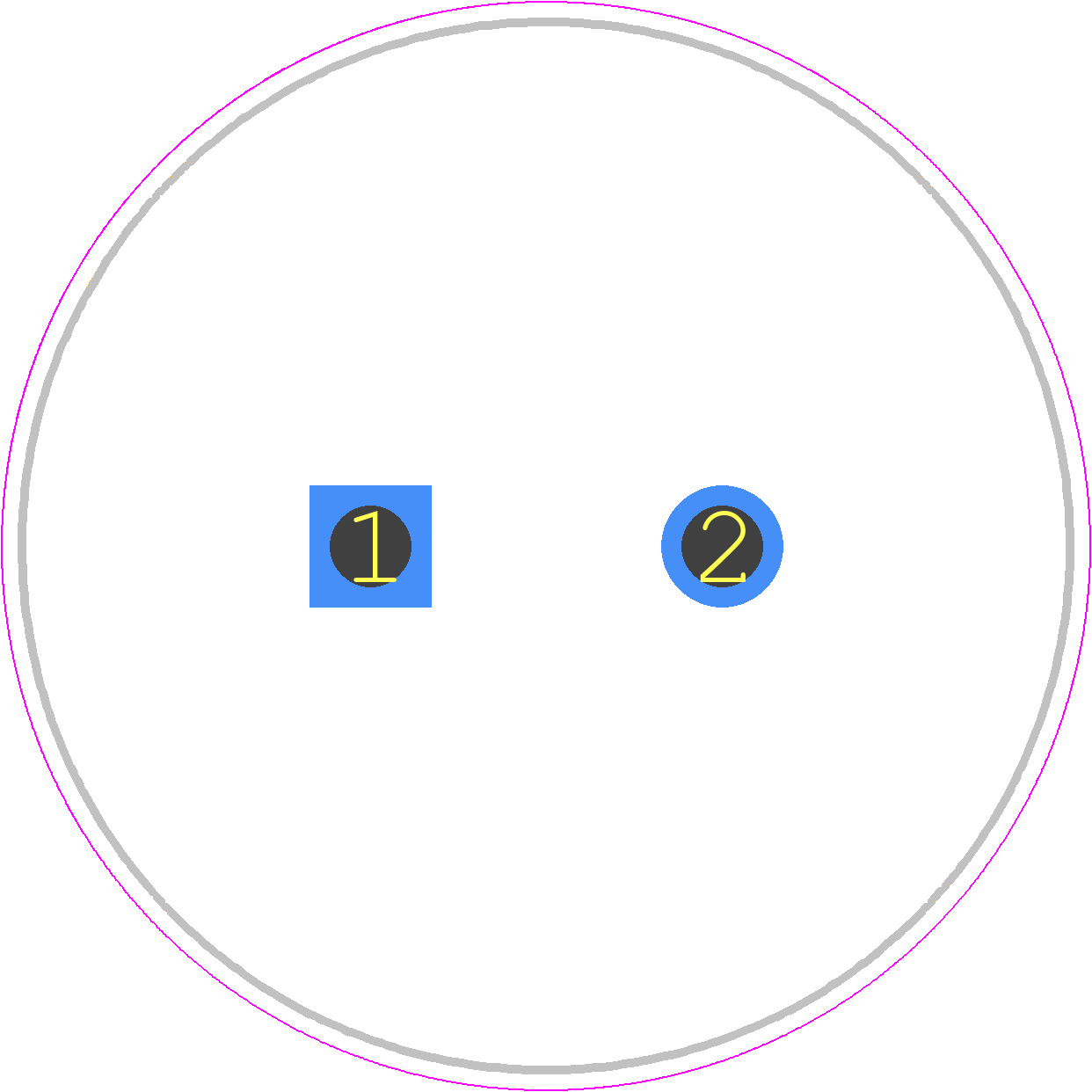

PCB Footprints
MAL225646223E3 - Vishay PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - MAL225646223E3
click to zoom
3D Models
MAL225646223E3 - Vishay - 3D model - Capacitor, Polarized Radial Diameter - MAL225646223E3
click to zoom

MAL225646223E3 Details

  • Manufacturer Part Number:

    MAL225646223E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    22000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    0.027 mΩ

  • Leakage Current:

    1.5 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Ripple Current:

    3180 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.45

  • Terminal Shape:

    SNAP-IN

MAL225646223E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL225646223E3 can be found in the Vishay Intertechnologies' application note AN483, which provides guidelines for surface mount assembly of ceramic chip capacitors.
  • To prevent damage, handle the MAL225646223E3 component by the edges, avoid touching the electrodes, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD).
  • The maximum voltage derating for MAL225646223E3 is typically 80% of the rated voltage, but it's recommended to consult the datasheet and application notes for specific derating guidelines.
  • MAL225646223E3 has a maximum operating temperature of 125°C, but it's recommended to consult the datasheet and application notes for specific temperature derating guidelines and to ensure the component meets the requirements of your application.
  • Store MAL225646223E3 components in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Follow the storage guidelines outlined in the datasheet and application notes to maintain the component's shelf life.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAL225646223E3 Overview

Use the download button to access the MAL225646223E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL22, or try a keyword search, such as Ceramic Capacitors
