The recommended land pattern for MAL225658103E3 can be found in Vishay's application note AN10343, which provides guidelines for surface-mount assembly of Vishay's metal film resistors.
To prevent damage, handle the MAL225658103E3 component by the body, avoiding touching the terminations. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage.
The maximum power rating for MAL225658103E3 is 0.25 W. Exceeding this rating may lead to component failure or reduced lifespan.
While MAL225658103E3 is a metal film resistor, it is not specifically designed for high-frequency applications. For high-frequency use, consider Vishay's thin film resistors, such as the TNPW series, which are designed for high-frequency performance.
To determine the correct resistor value, consider factors such as the circuit's operating voltage, current, and power requirements. Consult Vishay's application notes and technical resources, or consult with a qualified engineer or Vishay's technical support team.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAL225658103E3 Overview

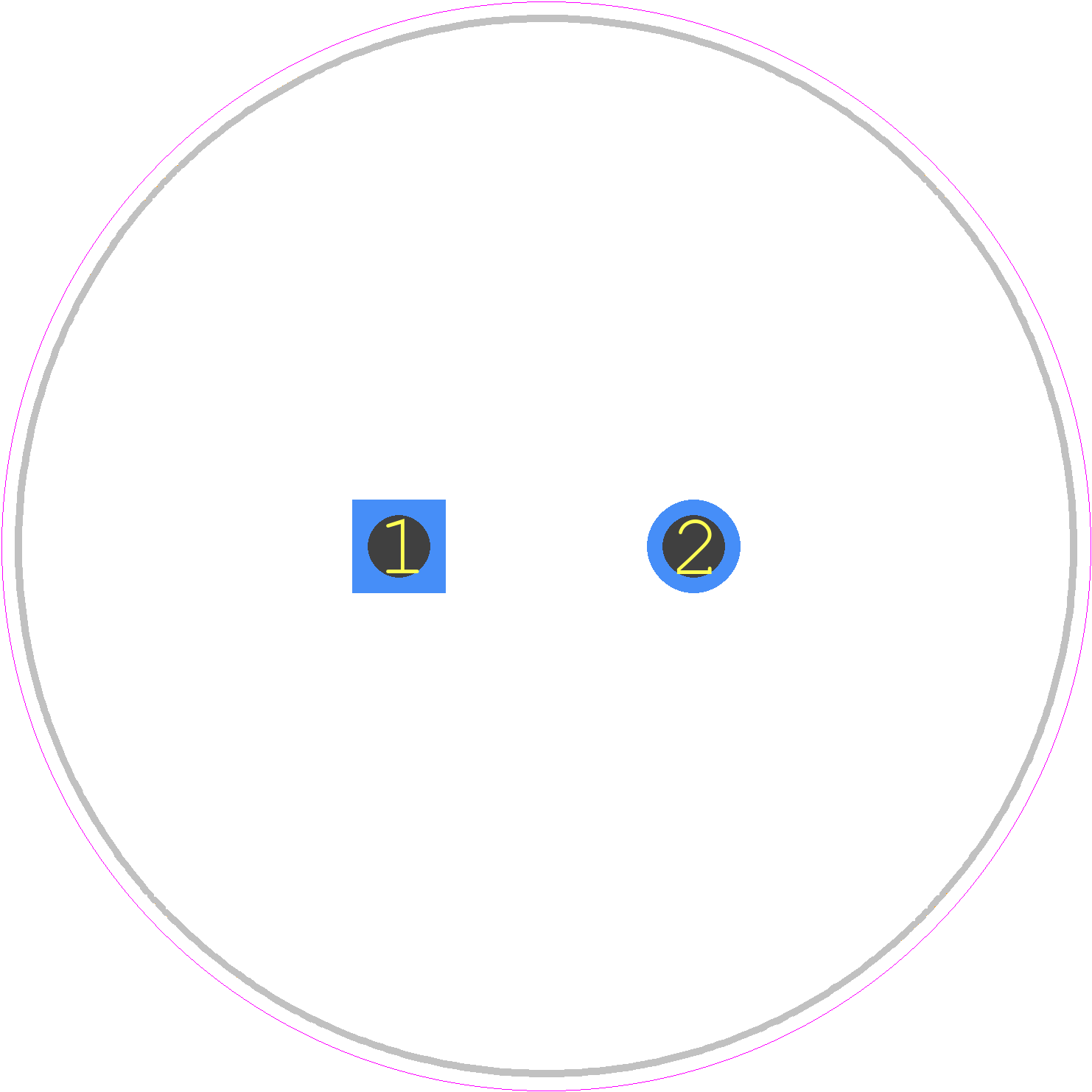

Use the download button to access the MAL225658103E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL22,
or try a keyword search, such as Ceramic Capacitors
