MAL225658682E3 - Vishay

Description: Aluminum Electrolytic Capacitors - Snap In 6800uF 63V 35x30

Download MAL225658682E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL225658682E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

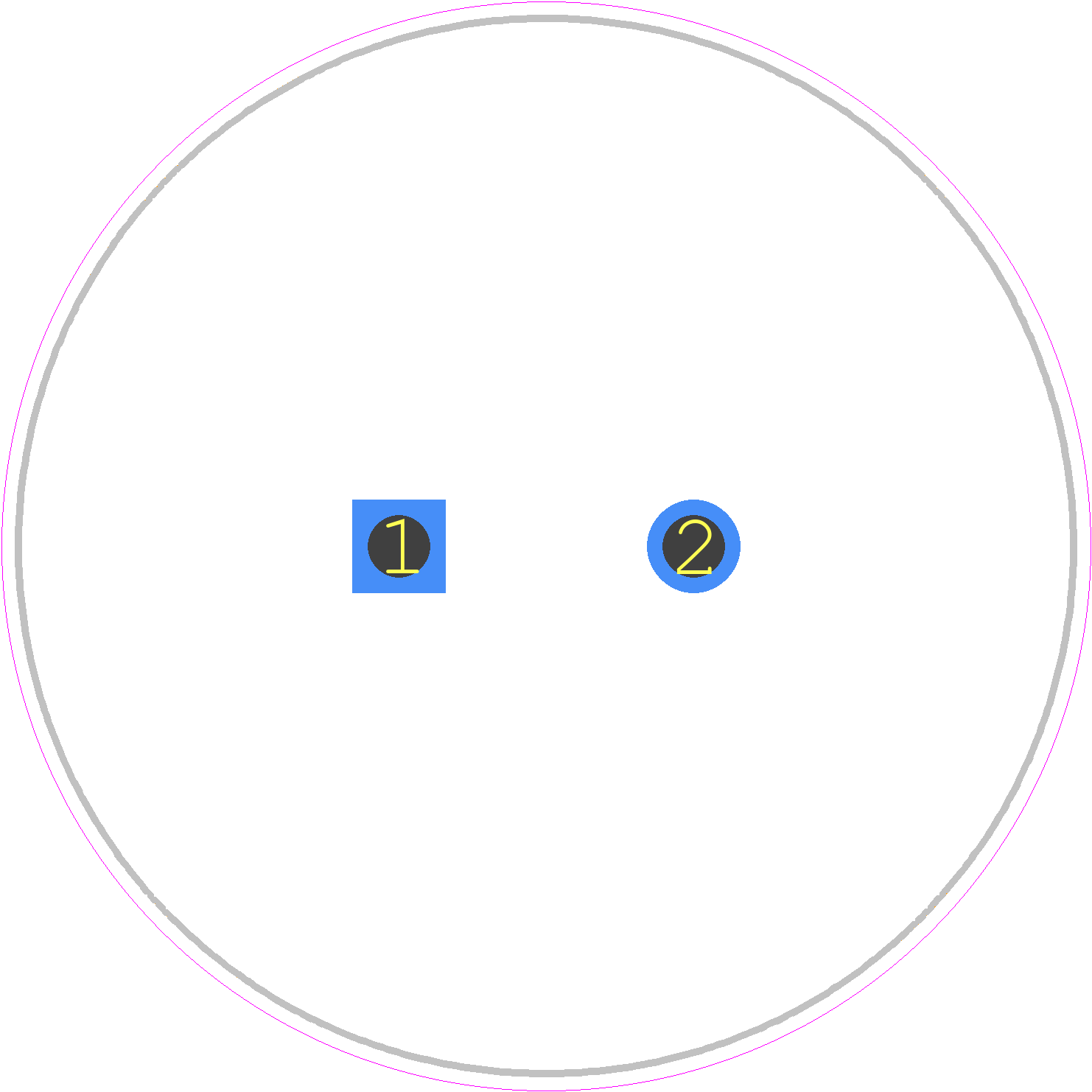

MAL225658682E3 - Vishay PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35X30_2021
click to zoom
3D Models
MAL225658682E3 - Vishay - 3D model - Capacitor, Polarized Radial Diameter - 35X30_2021
click to zoom

MAL225658682E3 Details

  • Manufacturer Part Number:

    MAL225658682E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    6800 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    0.059 mΩ

  • Leakage Current:

    1.5 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    3300 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.30

  • Terminal Shape:

    SNAP-IN

MAL225658682E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL225658682E3 can be found in Vishay's application note AN10395, which provides guidelines for surface-mount assembly of Vishay's metal film resistors.
  • To prevent damage, handle the MAL225658682E3 component by the body, avoiding touching the terminations. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage.
  • The maximum power rating for MAL225658682E3 is 0.25 W. Exceeding this rating may lead to component failure or reduced lifespan.
  • While MAL225658682E3 is a metal film resistor, it is not specifically designed for high-frequency applications. For high-frequency use, consider Vishay's thin film resistors, such as the TNPW series, which are designed for high-frequency performance.
  • The temperature coefficient of resistance (TCR) for MAL225658682E3 is ±100 ppm/°C. This means that for every 1°C change in temperature, the resistance value may change by ±0.01%.
