MAL225727681E3 - Vishay

MAL225727681E3 Frequently Asked Questions (FAQs)

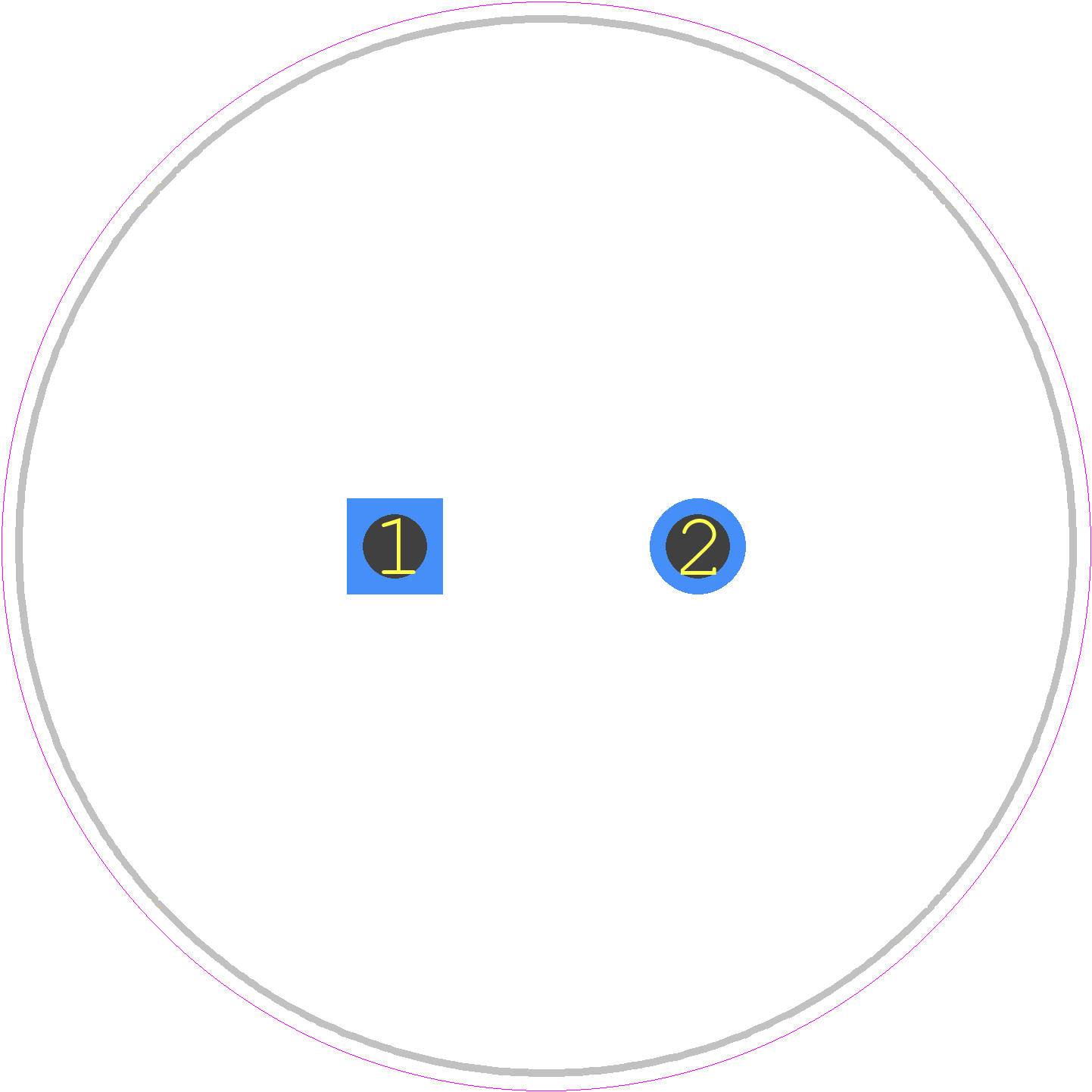

• What is the recommended land pattern for MAL225727681E3?
  The recommended land pattern for MAL225727681E3 can be found in the Vishay Intertechnologies' application note AN10395, which provides guidelines for surface mount assembly of ceramic chip capacitors.
• How do I handle the component during assembly to prevent damage?
  To prevent damage, handle the MAL225727681E3 component by the edges, avoid touching the electrodes, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD).
• What is the maximum voltage derating for MAL225727681E3?
  The maximum voltage derating for MAL225727681E3 is typically 80% of the rated voltage, but it's recommended to consult the datasheet and application notes for specific derating guidelines.
• Can I use MAL225727681E3 in high-temperature applications?
  The MAL225727681E3 is rated for operation up to 125°C, but it's essential to consider the component's temperature coefficient, thermal stress, and potential degradation when operating at high temperatures.
• How do I determine the equivalent series resistance (ESR) of MAL225727681E3?
  The ESR of MAL225727681E3 can be determined by measuring the impedance of the component at high frequencies (e.g., 100 kHz) using an impedance analyzer or a network analyzer.
