Part Image

MAL225957471E3 - Vishay

Description: Aluminum Electrolytic Capacitors - Snap In 470uF 450V 20% 105C 3000H 35x45mm

Download MAL225957471E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL225957471E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

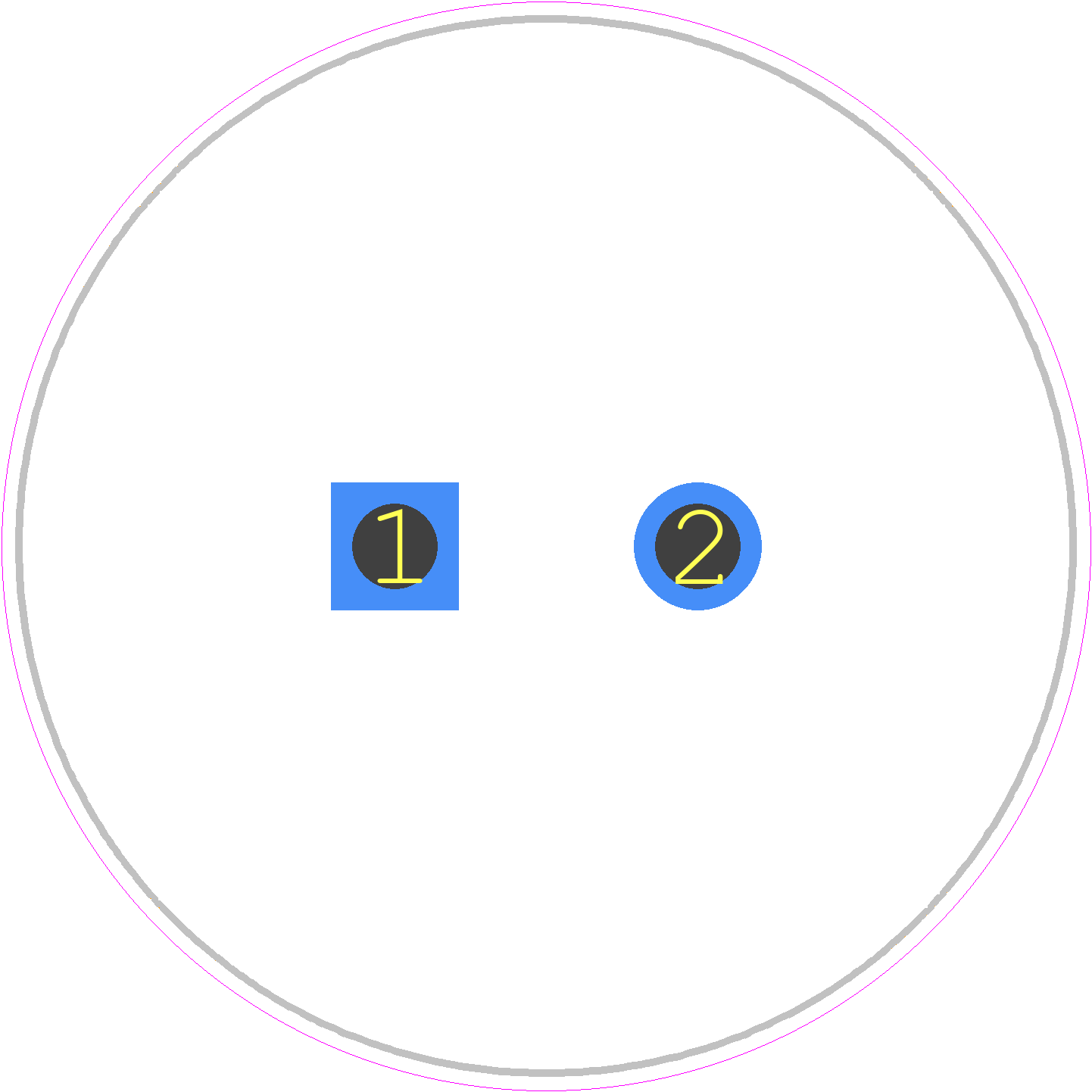

MAL225957471E3 - Vishay PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - MAL225957471E3
click to zoom
3D Models
MAL225957471E3 - Vishay - 3D model - Capacitor, Polarized Radial Diameter - MAL225957471E3
click to zoom

MAL225957471E3 Details

  • Manufacturer Part Number:

    MAL225957471E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    280 mΩ

  • Leakage Current:

    2.12 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    No

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    2360 mA

  • Surface Mount:

    NO

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

MAL225957471E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL225957471E3 can be found in Vishay's application note AN10365, which provides guidelines for surface-mount assembly of Vishay's metal film resistors.
  • To prevent damage, handle the MAL225957471E3 by the body, avoiding touching the terminations. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage.
  • The maximum power rating for the MAL225957471E3 decreases with increasing temperature. Consult Vishay's application note AN20005, which provides derating curves for metal film resistors.
  • While the MAL225957471E3 is suitable for general-purpose applications, it may not be the best choice for high-frequency applications due to its metal film construction. For high-frequency applications, consider using thin-film resistors or specialized high-frequency resistors.
  • Store the MAL225957471E3 in its original packaging or in a dry, cool place, away from direct sunlight and moisture. Avoid exposing the components to extreme temperatures, humidity, or physical stress.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAL225957471E3 Overview

Use the download button to access the MAL225957471E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL22, or try a keyword search, such as Ceramic Capacitors
