MAL229956152E3 - Vishay

Description: Vishay Aluminium Capacitor 1500μF 400 V 35mm Snap-In 299 299 Series Lifetime 5000h +105°C

Download MAL229956152E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL229956152E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

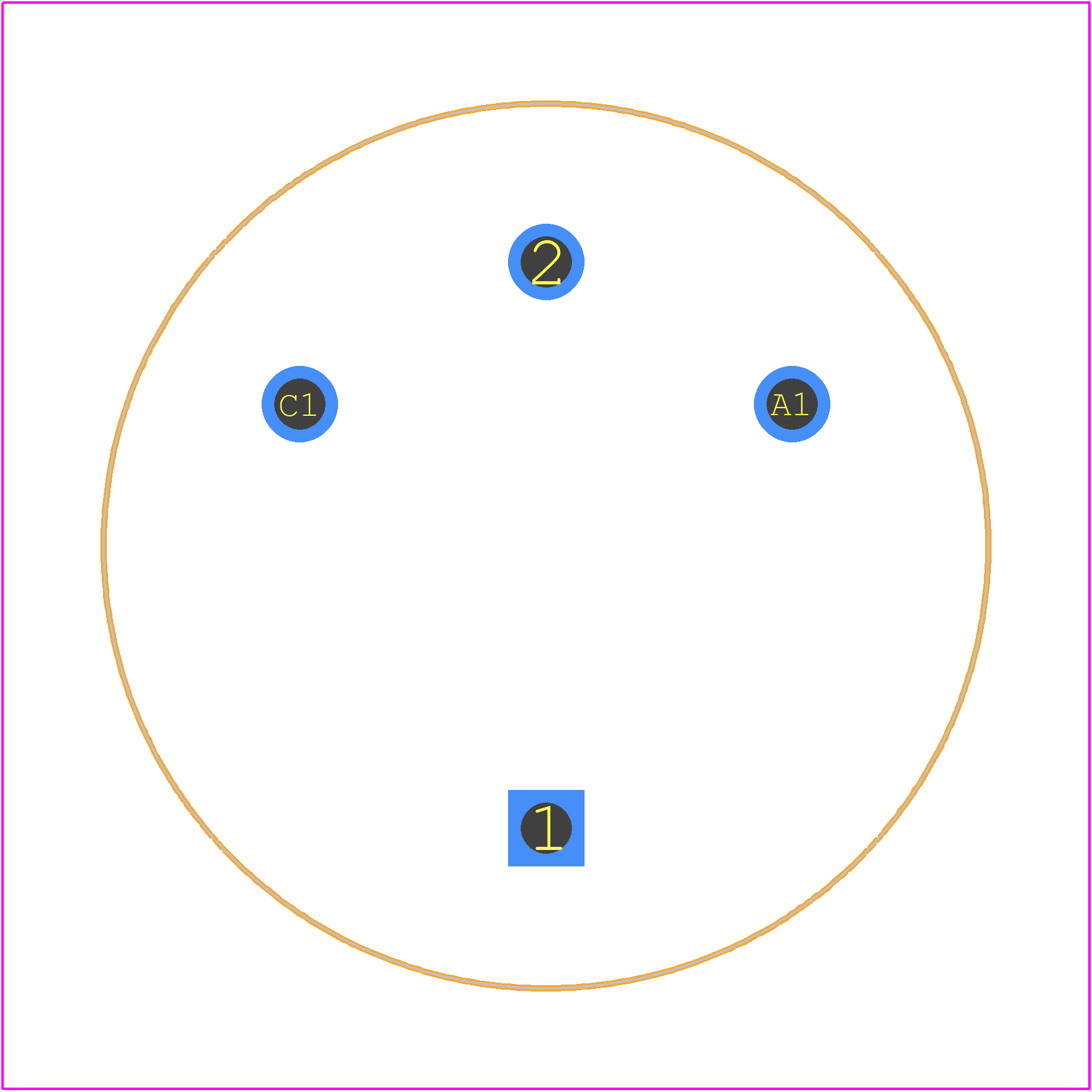

MAL229956152E3 - Vishay PCB footprint - Other - Other - MAL229956152E3
click to zoom
3D Models
MAL229956152E3 - Vishay - 3D model - Other - MAL229956152E3
click to zoom

MAL229956152E3 Details

  • Manufacturer Part Number:

    MAL229956152E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    1500 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    90 mΩ

  • Leakage Current:

    1.204 mA

  • Length:

    100 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    5540 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Shape:

    SNAP-IN

MAL229956152E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL229956152E3 can be found in Vishay's application note AN483, which provides guidelines for surface-mount assembly of ceramic chip capacitors.
  • The MAL229956152E3 is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high self-resonant frequency (SRF). The capacitor's construction and materials minimize parasitic inductance, making it suitable for high-frequency applications.
  • The MAL229956152E3 has a maximum operating temperature of 125°C, making it suitable for high-temperature applications. However, it's essential to consider the derating curves and temperature coefficients to ensure the capacitor meets the specific application requirements.
  • Vishay recommends a soldering profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
  • The MAL229956152E3 is not intended for use in safety-critical applications, such as those requiring UL or IEC certification. For safety-critical applications, it's recommended to use capacitors specifically designed and certified for those applications.
