MACOM provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The MAMF-011146-TR0500 has a thermal resistance of 25°C/W. To manage heat dissipation, use a heat sink or thermal pad, and ensure good airflow around the device. Additionally, follow MACOM's recommended thermal management guidelines in their application notes.
The MAMF-011146-TR0500 has an operating temperature range of -40°C to +85°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and it's recommended to operate within a temperature range of -20°C to +70°C for optimal performance.
To ensure reliability and longevity, follow MACOM's recommended storage and handling procedures, avoid exposing the device to moisture or extreme temperatures, and use a clean and dry assembly process. Additionally, ensure that the device is operated within its recommended specifications and avoid over-stressing the device.
MACOM recommends using a reflow soldering process with a peak temperature of 260°C. It's essential to follow MACOM's recommended soldering and assembly guidelines, which can be found in their application notes, to ensure reliable connections and minimize the risk of damage during assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAMF-011146-TR0500 Overview

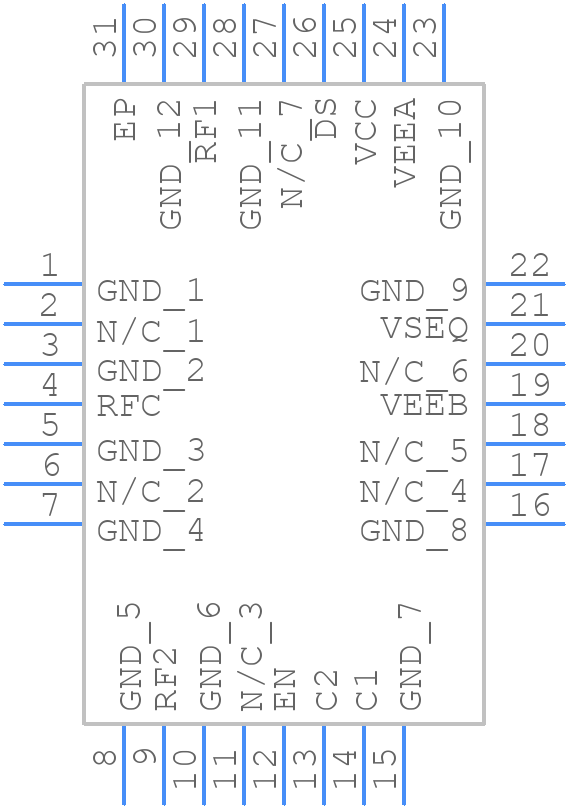

Use the download button to access the MAMF-011146-TR0500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAMF-,
or try a keyword search, such as Multiplexers or Switches
