MACOM provides a recommended PCB layout and land pattern in their application note AN-60-011, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The MAMX-011122-TR0500 has a thermal resistance of 25°C/W. To manage thermal performance, ensure good heat sinking, use a thermal pad or heat sink, and follow MACOM's thermal management guidelines in their application notes.
The MAMX-011122-TR0500 has an operating temperature range of -40°C to +85°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and derating may be necessary.
While the MAMX-011122-TR0500 is designed for 50 ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may require additional circuitry and design considerations to ensure optimal performance.
MACOM recommends a biasing scheme of Vd = 5V, Id = 100mA, and Vg = -2V for optimal performance. However, the specific biasing requirements may vary depending on the application and design requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAMX-011122-TR0500 Overview

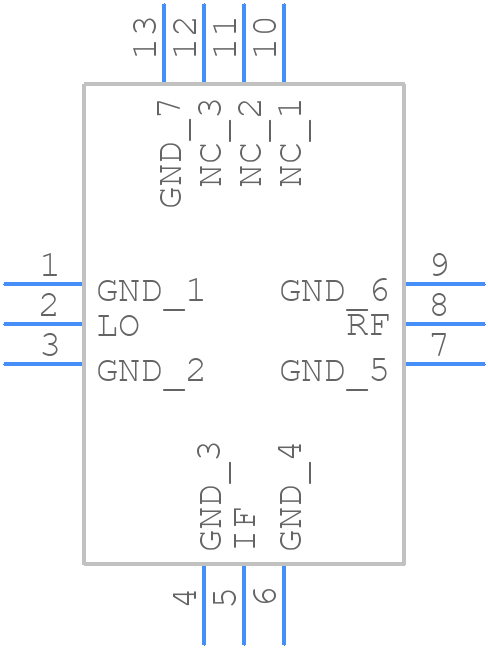

Use the download button to access the MAMX-011122-TR0500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAMX-,
or try a keyword search, such as RF/Microwave Mixers
