Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAN6760
- Part Number MAN6760
- Manufacturer Everlight
- Pin Count 10
- Part Category Display
- Package Category Dual-In-Line Sockets

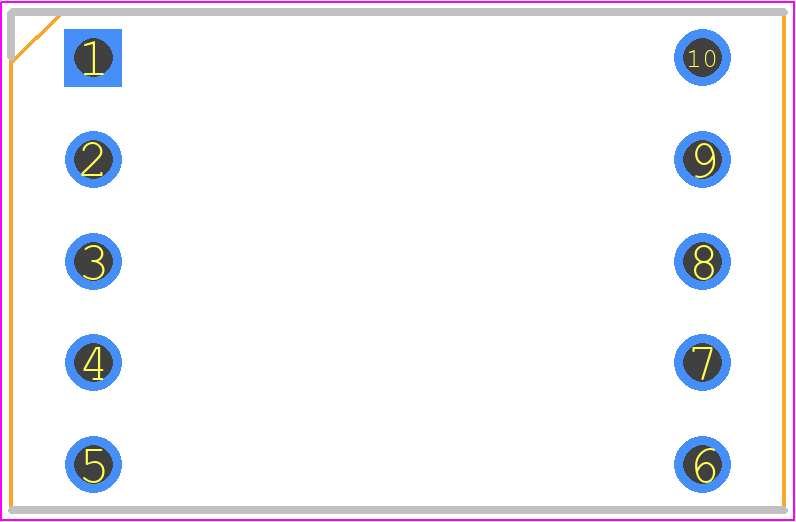

- Footprint Name Dual-In-Line Sockets - 10-DIP
- Released Date Oct 4, 2023
- Last Modified Date Oct 4, 2023 2:41 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAN6760 Details
-
Manufacturer Part Number:
MAN6760
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
PLASTIC PACKAGE-18
-
ECCN Code:
EAR99
-
HTS Code:
8541.40.20.00
-
Manufacturer:
Everlight Electronics Co Ltd
-
YTEOL:
0
-
Additional Feature:
IC COMPATIBLE, HIGH RELIABILITY
-
Color:
RED
-
Configuration:
COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
MAN6760 Frequently Asked Questions (FAQs)
-
The recommended storage temperature range for the MAN6760 is -40°C to 100°C.
-
Yes, the MAN6760 is designed to operate in humid environments, but it's recommended to follow proper handling and storage procedures to prevent moisture-related issues.
-
The maximum soldering temperature for the MAN6760 is 260°C for 10 seconds.
-
Yes, the MAN6760 is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for lead-free soldering.
-
The typical forward voltage drop of the MAN6760 is around 1.8-2.2V at a forward current of 20mA.
Trust Checks
Community Provided
System Verified
Community Approved
MAN6760 Overview

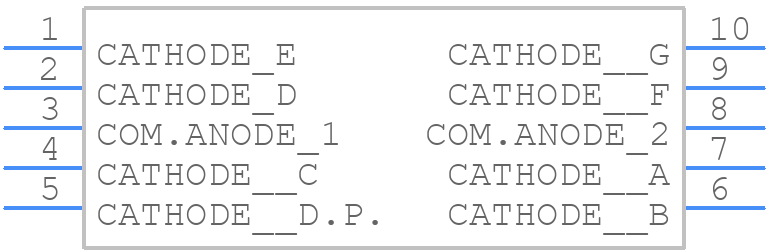

Use the download button to access the MAN6760 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MAN67,
or try a keyword search, such as LED Displays
