MAN6910 - Everlight

Description: Displays Panel 2DIGIT 16LED Hi-Eff. Red CA 18-Pin DIP Module

Download MAN6910 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

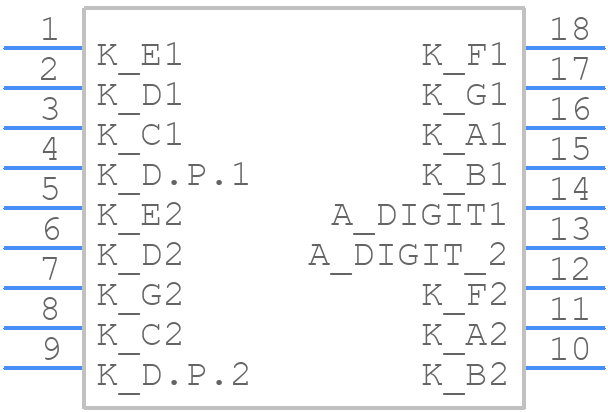

MAN6910 - Everlight - PCB symbol
click to zoom
PCB Footprints

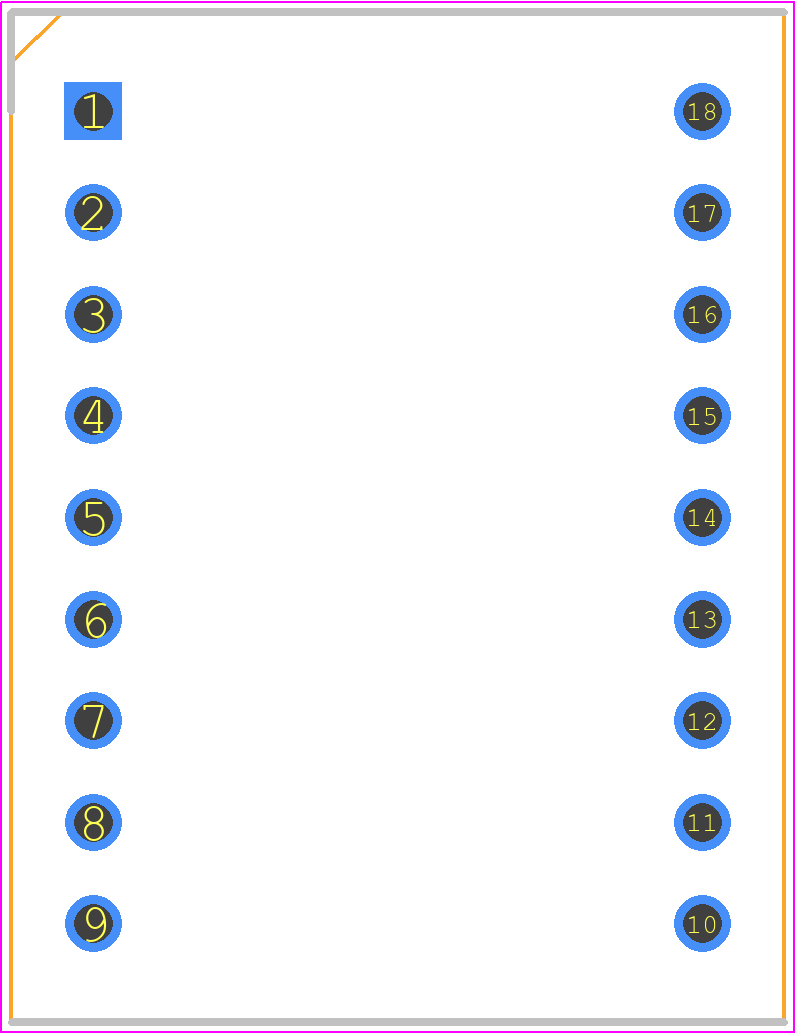

MAN6910 - Everlight PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 8-DIP
click to zoom

MAN6910 Details

  • Manufacturer Part Number:

    MAN6910

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Everlight Electronics Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    635 nm

MAN6910 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for the MAN6910 is -40°C to 100°C.
  • Yes, the MAN6910 is designed to operate in humid environments, but it's recommended to follow proper handling and storage procedures to prevent moisture-related issues.
  • The maximum allowable voltage for the MAN6910 is 35V, but it's recommended to operate within the specified voltage range (5V to 20V) for optimal performance and reliability.
  • To ensure proper soldering, follow the recommended soldering profile (260°C for 10 seconds) and use a solder with a melting point above 217°C. Avoid using excessive soldering temperature or time to prevent damage.
  • Yes, the MAN6910 is suitable for high-frequency applications up to 100 MHz, but it's essential to follow proper PCB design and layout guidelines to minimize signal degradation and ensure optimal performance.
