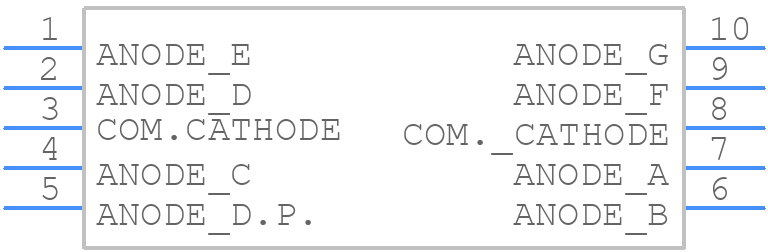

Symbol

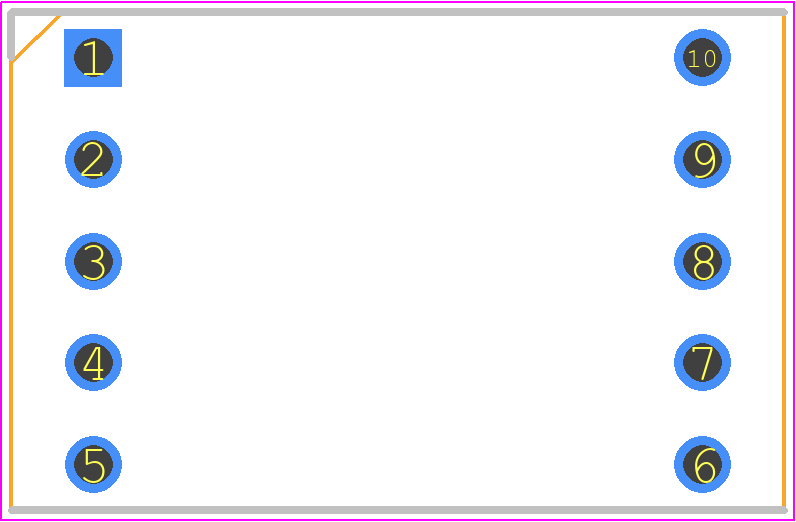

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAN6980
- Part Number MAN6980
- Manufacturer onsemi
- Pin Count 10
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - man6980
- Released Date Dec 12, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAN6980 Details
-
Manufacturer Part Number:
MAN6980
-
Manufacturer:
onsemi
Trust Checks
Expert Contribution
System Verified
Community Approved
MAN6980 Overview
Use the download button to access the MAN6980 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MAN69,
or try a keyword search, such as LED Displays
