MACOM recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
The device requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current, and that the device is properly terminated to prevent oscillations.
MACOM recommends using a conjugate match at the input and output ports to achieve optimal performance. A 50Ω system impedance is recommended, and the device should be matched to the system impedance using a π-network or a T-network.
The device has a built-in thermal shutdown feature that activates when the junction temperature exceeds 150°C. To handle this feature, ensure the device is properly cooled, and implement a thermal monitoring system to detect and respond to thermal shutdown events.
MACOM recommends using a human-body model (HBM) ESD protection circuit with a minimum of 2kV rating to protect the device from electrostatic discharge.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAPD-009918-C209C0 Overview

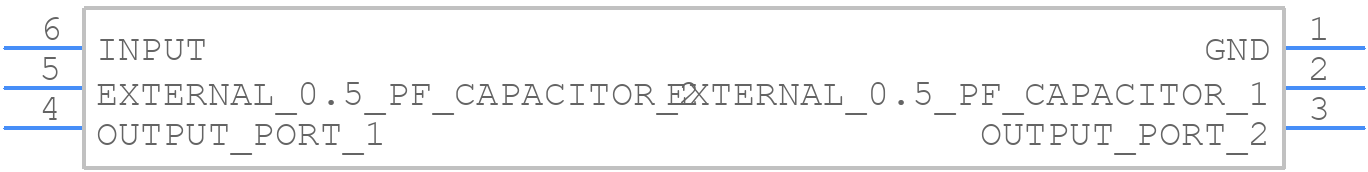

Use the download button to access the MAPD-009918-C209C0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAPD-,
or try a keyword search, such as RF/Microwave Splitter/Combiners
