MAR-6+ - Mini-Circuits

Description: RF Amplifier SMT Gain Block, DC - 2000 MHz, 50 ohms,3.5V,16mA

Download MAR-6+ Model

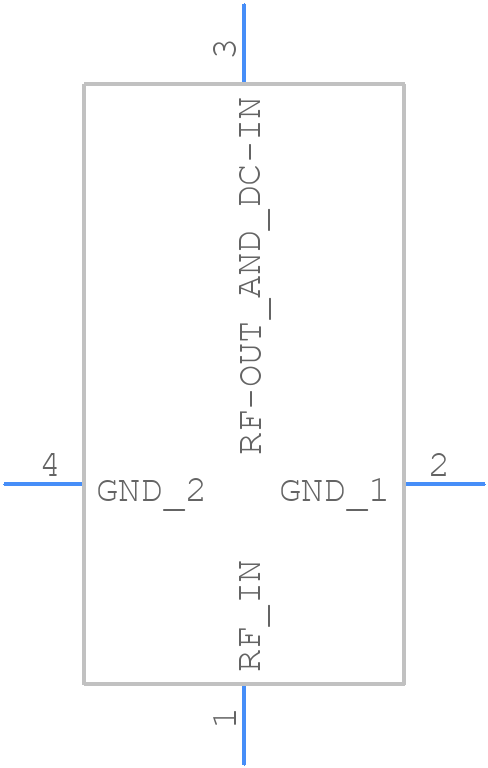

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAR-6+ - Mini-Circuits PCB footprint - Other - Other - VV105_2025-1.1
click to zoom
3D Models
MAR-6+ - Mini-Circuits  - 3D model - Other - VV105_2025-1.1
click to zoom

MAR-6+ Details

  • Manufacturer Part Number:

    MAR-6+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.65

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    15 dB

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Max:

    2000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SL,4LEAD,.085CIRC

  • Power Supplies:

    3.5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    16 mA

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Tin/Silver/Nickel (Sn/Ag/Ni)

  • VSWR-Max:

    1.7

MAR-6+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature for the MAR-6+ is 85°C, but it's recommended to operate it at 70°C or below for optimal performance and reliability.
  • Yes, the MAR-6+ can be used in switching applications, but it's essential to ensure that the switching frequency is within the device's bandwidth and that the input and output are properly terminated to avoid ringing and oscillations.
  • The MAR-6+ has a 50Ω input and output impedance. To impedance match, use a π-network or a T-network with resistors and capacitors to match the impedance of your system to the MAR-6+.
  • For optimal performance, use a 4-layer PCB with a solid ground plane, and keep the input and output traces as short as possible. Also, avoid placing components near the MAR-6+ that could cause electromagnetic interference.
  • Yes, the MAR-6+ is suitable for high-reliability and space applications, but it's essential to follow Mini-Circuits' recommended screening and qualification procedures to ensure the device meets the required standards.
