MASTERGAN1 - STMicroelectronics

Description: Gate Drivers High-density power driver-high volt enhance mode GaN half bridge w/gate driver

Download MASTERGAN1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

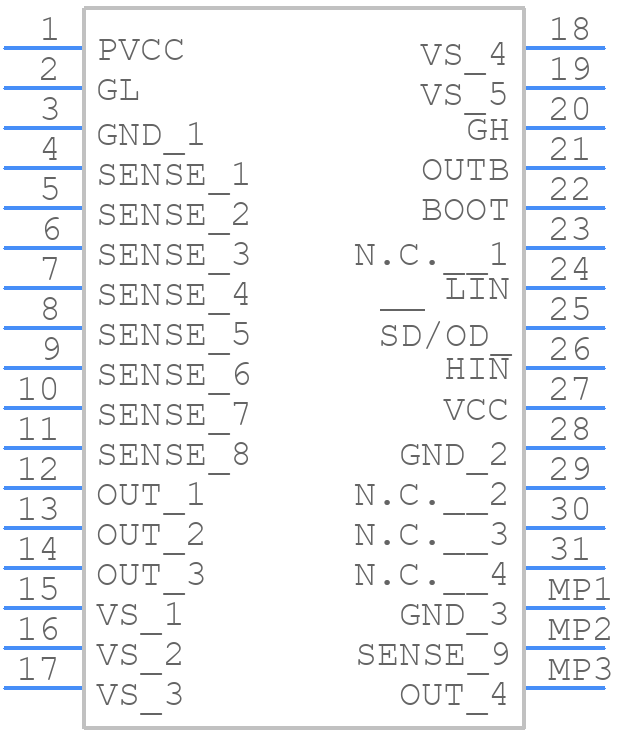

Symbol
MASTERGAN1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
MASTERGAN1 - STMicroelectronics PCB footprint - Other - Other - MASTERGAN1-4
click to zoom
3D Models
MASTERGAN1 - STMicroelectronics - 3D model - Other - MASTERGAN1-4
click to zoom

MASTERGAN1 Details

  • Manufacturer Part Number:

    MASTERGAN1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    QFN-31

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2020-08-11

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED GAN FET DRIVER

  • JESD-30 Code:

    S-XQCC-N31

  • Length:

    9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    31

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    17 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC31,.35SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    9.5 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    6 V

  • Supply Voltage1-Max:

    8.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    6 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.6 mm

  • Terminal Position:

    QUAD

  • Turn-off Time:

    0.07 µs

  • Turn-on Time:

    0.07 µs

  • Width:

    9 mm

MASTERGAN1 Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the MASTERGAN1. The device should be placed near the power supply, and the input and output capacitors should be placed as close as possible to the device.
  • The MASTERGAN1 requires a bias voltage of 5V to 15V, and a bias current of 1mA to 10mA. The bias voltage should be decoupled with a 10uF capacitor, and the bias current should be limited with a 1kΩ resistor.
  • The maximum power dissipation of the MASTERGAN1 is 2.5W. To ensure it doesn't overheat, the device should be mounted on a PCB with a thermal pad, and a heat sink can be added if necessary. The ambient temperature should be kept below 85°C.
  • The MASTERGAN1 has built-in overvoltage protection, but it's recommended to add external protection devices such as a TVS diode and a fuse to protect against overvoltage and overcurrent. A 1A fuse and a 15V TVS diode are recommended.
  • The recommended input capacitance is 10uF to 22uF, and the recommended output capacitance is 10uF to 47uF. The capacitors should be X7R or X5R type, and should be placed as close as possible to the device.
