STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to minimize electromagnetic interference (EMI) and ensure reliable operation.
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the MASTERGAN1LTR.
The MASTERGAN1LTR has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management, such as using a heat sink or thermal interface material, to prevent overheating and ensure reliable operation.
Yes, the MASTERGAN1LTR is AEC-Q100 qualified, which makes it suitable for automotive and high-reliability applications. However, it's essential to follow the recommended design guidelines, testing, and validation procedures to ensure the device meets the specific requirements of the application.
To troubleshoot issues with MASTERGAN1LTR, start by verifying the PCB layout, component selection, and soldering quality. Check for any signs of overheating, and ensure the input voltage and current are within the recommended specifications. Use oscilloscopes or other diagnostic tools to analyze the output voltage, current, and frequency. Consult the datasheet, application notes, and STMicroelectronics' support resources for guidance on troubleshooting and debugging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MASTERGAN1LTR Overview

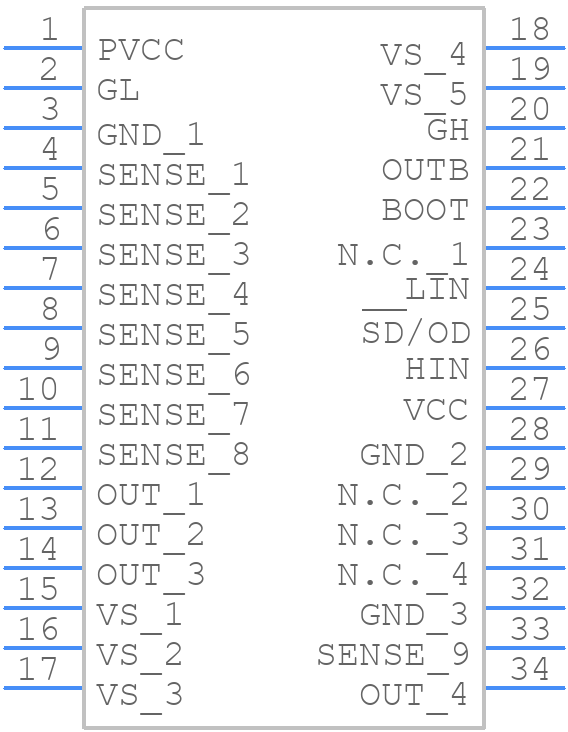

Use the download button to access the MASTERGAN1LTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MASTE,
or try a keyword search, such as MOSFET Drivers
