MASTERGAN2 - STMicroelectronics

Description: Gate Drivers High power density 600V Half bridge driver with two enhancement mode GaN HEMT

Download MASTERGAN2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

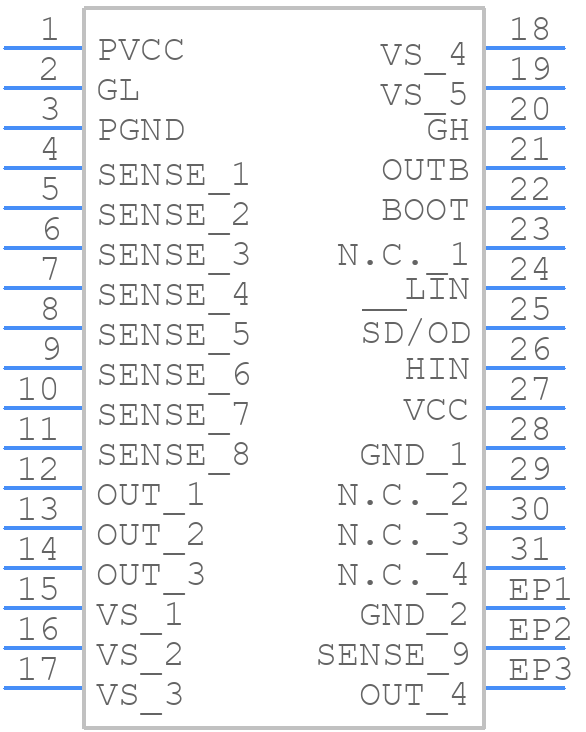

MASTERGAN2 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
MASTERGAN2 - STMicroelectronics PCB footprint - Other - Other - MASTERGAN2-3
click to zoom
3D Models
MASTERGAN2 - STMicroelectronics - 3D model - Other - MASTERGAN2-3
click to zoom

MASTERGAN2 Details

  • Manufacturer Part Number:

    MASTERGAN2

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

MASTERGAN2 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the MASTERGAN2 application note (AN5323) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The MASTERGAN2 can be configured for different gate driver topologies such as half-bridge, full-bridge, and three-phase configurations using external resistors and capacitors. The configuration depends on the specific application requirements and can be found in the MASTERGAN2 application note (AN5323) and the STMicroelectronics website.
  • The maximum operating frequency of the MASTERGAN2 is 500 kHz, but it can be extended up to 1 MHz with proper PCB design and layout. However, the actual operating frequency depends on the specific application and the switching characteristics of the power devices.
  • The MASTERGAN2 provides a synchronization input (SYNC_IN) that allows the device to be synchronized with the power devices. The synchronization signal should be connected to the SYNC_IN pin and should have a frequency equal to the switching frequency of the power devices. Additionally, the MASTERGAN2 has a built-in dead-time generator that ensures proper synchronization and dead-time control.
  • The VBOOT pin on the MASTERGAN2 is used to supply power to the bootstrap circuitry of the high-side gate driver. It should be connected to a voltage source that is higher than the input voltage (VIN) and should be decoupled with a capacitor to ensure proper operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MASTERGAN2 Overview

Use the download button to access the MASTERGAN2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MASTE, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
